- APPLICATION INSTRUCTIONS
- ORDER REFERENCES

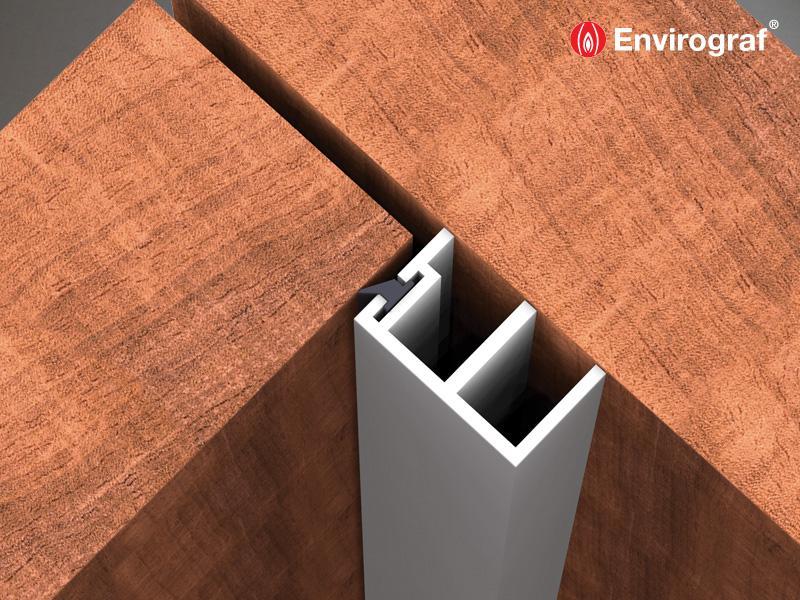

Door stop set without intumescent seals, but supplied as standard with a 5mm brush smoke seal. Other seals can be used (see Product Group 73). All seals give smoke and draught protection. Moulding available in brown or white (state colour when ordering).
- Can be fitted with acoustic seals which also serve as draught and smoke seals
- Designed to replace and improve upon standard wooden door stops
FIRE TEST PERFORMANCE
Remove the backing paper from the seal, position the seal and fix. Finish the fixing with panel pins, securing each end and at 300mm intervals. Used as a surface-mounted door stop. The standard smoke seal supplied is a 5mm brush. Rubber seals may also be used (see technical data sheet).
Please use the links below to download relevant information as PDF documents:
|SDSTOP||Single door set||2 x 2100mm lengths, 1 x 1050mm length|
|DDSTOP||Double door set||3 x 2100mm lengths, 1 x surface mounted closing stile seal|
