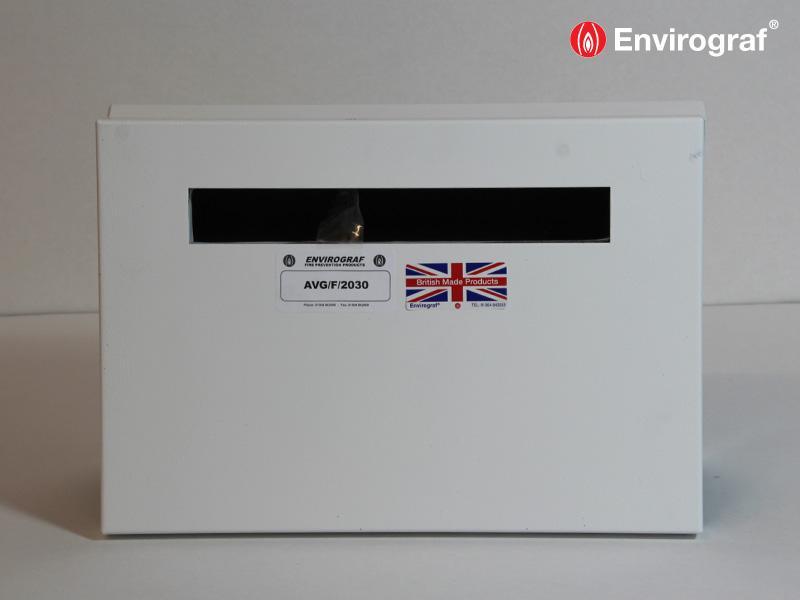

133-AVG-F_grille

Acoustic/Fireproof Ventilation Grille

Fireproof vent grille offering fire and acoustic protection, whilst still allowing ventilation. (PRODUCT 133)

RESET OPTIONS >
REF: PRODUCT 133
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

AVG/F fireproof ventilation grille offers up to 60 minutes protection plus sound absorption. It can be used on partition walls and doors. and it has been tested to European Standards and approved in accordance with the general principles of NEN6069. It consists of two parts, one each side of the opening, and the internal cavity of both sections is filled with micro-acoustic material, with intumescent strips on the two long sides of the risk side opening. To accommodate the grille, the ventilation aperture must be at least 10mm larger than the height between the upper and lower opposing slot limits. The grille protrudes by 25mm on each side.



ADVANTAGES

  • Offers up to 60 minutes protection, as well as sound absorption
  • Ideal for use on partition walls and doors to provide ventilation between rooms while preventing sound transfer



FIRE TEST PERFORMANCE

Conforms to NEN6069, offering up to 60 minutes of fire protection and sound absorption.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Ensure ventilation aperture is at least 10mm larger than the height between the upper and lower opposing slot limits. Screw grille plates in place on either side of the opening ensuring the ventilation slot is at the top on one side and the bottom on the other so that they are vertically opposite (not directly opposite each other).

Note: the grille plates will protrude by 25mm on each side.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD133-02-2015



Application Instructions

AP133-02-2015



COSHH Data

HS133-02-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF DIMENSIONS (HxW)
AVG/F/1515 150mm x 150mm
AVG/F/1530 150mm x 300mm
AVG/F/1540 150mm x 400mm
AVG/F/2020 200mm x 200mm
AVG/F/2030 200mm x 300mm
AVG/F/2040 200mm x 400mm
AVG/F/2525 250mm x 250mm
AVG/F/3030 300mm x 300mm
AVG/F/3535 350mm x 350mm
AVG/F/4040 400mm x 400mm
AVG/F/4545 450mm x 450mm
AVG/F/5050 500mm x 500mm
