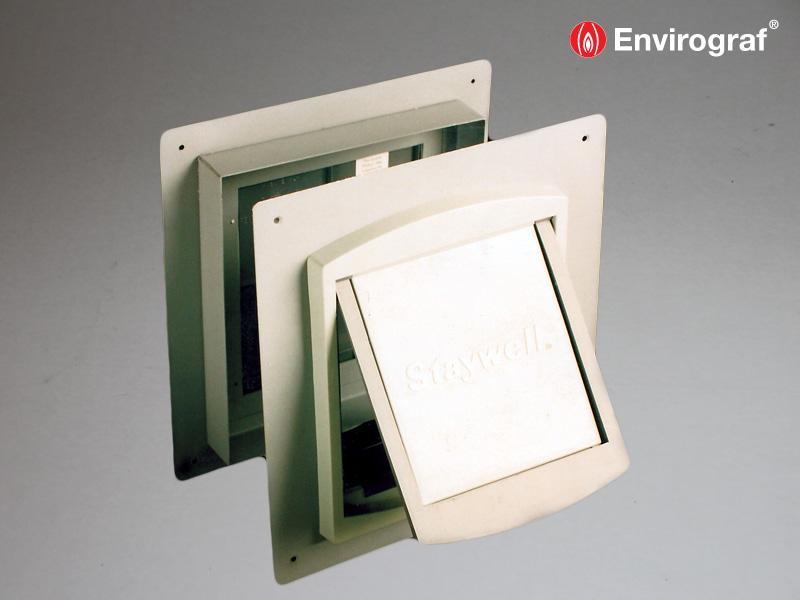

A standard animal door flap (NOT SUPPLIED) fits into the envirograf® metal-framed animal door flap protector. This flap protector contains a drop curtain made to give up to 60 minutes of fire protection after release by a thermal link when the temperature reaches 70°C. NOT SUITABLE FOR USE WITH ALUMINIUM ANIMAL DOOR FLAPS. Product 118 Flap Protector is simple to fit and is available in brown, white or grey finishes. Can be made to fit a brick wall of any thickness. Other sizes can be made for use with all animal door flaps EXCEPT ALUMINIUM.
- Fitted with internal intumescent and PVC-faced sponge, allowing smooth and easy passage for the animal
- Will not seal or expand until the fire has reached 120°C at the door (approximately 4 minutes into the fire)
- Ideal for use in fire-rated doors in apartments and houses
- The bat flap is designed to allow protected bat species access to nests in buildings, and is fitted with a thermal link which will activate the drop curtain to seal the opening in a fire
FIRE TEST PERFORMANCE
Tested to BS476 Part 22 (1987) achieving 68 minutes protection.
Tested to EN1366-3 (2009).
A rectangular or square opening is cut into the door or wall as specified for the particular unit (Petsafe/Staywell etc.) For Example, for an opening of 348mm x 225mm specified by the flap manufacturer, the opening for the Envirograf® fire protection unit would need to be cut to 408mm x 285mm. each unit supplied has its own hole cutting requirements and these should be checked when ordering (See technical data sheet or price list for full range of sizes). The Envirograf® fire protection unit is supplied in two sections. The first part fits into the outside of the door or wall and has four fixing screws. The second part fits through the inside of the opening, into the first part and also has four fixing screws. The original branded cat/dog flap then screws to the face of the Envirograf® fire protection unit so it will be necessary to drill small holes in the metal face of the unit for the screws from the cat/dog flap.
Please use the links below to download relevant information as PDF documents:
ANIMAL DOOR FLAP PROTECTORS
|REF||STAYWELL FLAP TYPE||FLAT CUT OUT SIZE||FLAP PROTECTOR CUTOUT SIZE|
|FP01||Series 300/400/500||168mm x 175mm||228mm x 235mm|
|FP02||Series 600 (Small)||245mm x 150mm||305mm x 210mm|
|FP03||Series 600 (Medium)||348mm x 225mm||408mm x 285mm|
|FP04||Series 600 (Large)||451mm x 277mm||521mm x 347mm|
|FP05||Series 600 (X Large)||642mm x 366mm||722mm x 446mm|
|FP06||Series 700 (Small)||180mm x 155mm||240mm x 213mm|
|FP07||Series 700 (Medium)||265mm x 230mm||325mm x 290mm|
|FP08||Series 700 (Large)||354mm x 306mm||424mm x 376mm|
|FP09||Series 800||429mm x 291mm||499mm x 361mm|
|FP10||Series 900||169mm x 169mm||229mm x 229mm|
|FP11||251mm x 251mm||311mm x 311mm|
|FP12||210mm x 227mm||270mm x 287mm|
