Circular Cupboard And Door Ventilator

Easy-to install circular vents to allow airflow through doors whilst providing fire and smoke resistance. (PRODUCT 155)

RESET OPTIONS >
REF: PRODUCT 155
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

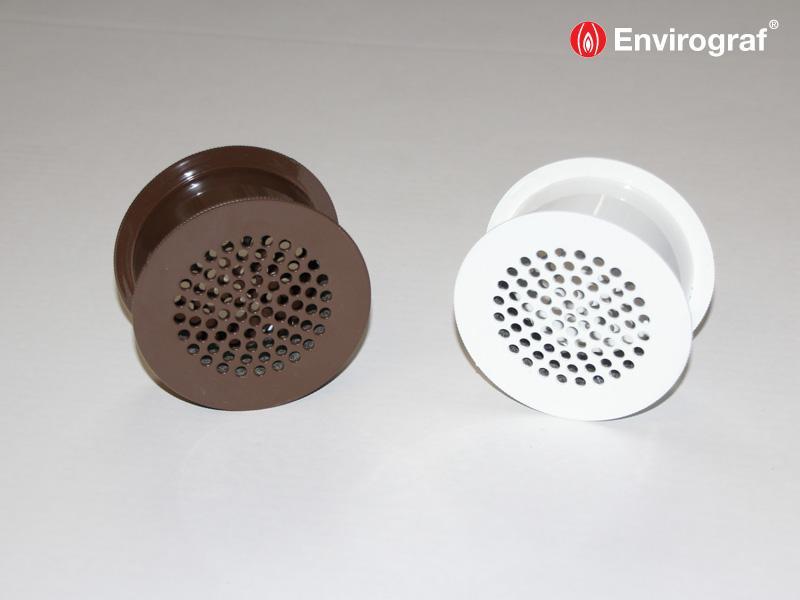

This product assists in areas of airborne moisture, such as bathrooms, cupboards, kitchens, toilets, etc. It offers up to one hour of fire protection to the penetration. Available in white or brown finish in standard sizes.



ADVANTAGES

  • A simple yet effective ventilation system which provides a solution to poorly ventilated areas which rely on a single extractor fan
  • Ideal for use in areas with high levels of steam and condensation
  • Comply with building regulations, allowing them to be used in cupboards housing gas meters
  • Other sizes, shapes and colours can be made to order



FIRE TEST PERFORMANCE

Tested to BS476 Parts 20 & 22 (1987), achieving 60 minutes fire protection.
Tested to EN 1363-1 (2000).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

The vent grilles are simple to install. Three vents are required across the bottom of the door. Simply cut three holes to suit the vent diameter. Each grille comes in two parts which are then pushed together through the prepared hole with no need for any further fixings.  Standard sized grilles are made to suit door thicknesses from 35mm to 56mm but can also be made to suit thinner doors from 28mm to 45mm.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD155-03-2015



Application Instructions

AP155-03-2015



COSHH Data

HS155-03-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF FACE DIAMETER CUT HOLE SIZE DOOR THICKNESS
CVG1/Brown 70mm 55mm 35mm-56mm
CVG1/White 70mm 55mm 35mm-56mm
CVG2/Brown 90mm 76mm 35mm-56mm
CVG2/White 90mm 76mm 35mm-56mm
CVG3/Brown 70mm 55mm 28mm-45mm
CVG3/White 70mm 55mm 28mm-45mm
