78-Envirostrip

Envirostrip

L-shaped, rebated fire, smoke, draught and weather seal for doors and windows. (PRODUCT 78)

RESET OPTIONS >
REF: PRODUCT 78
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

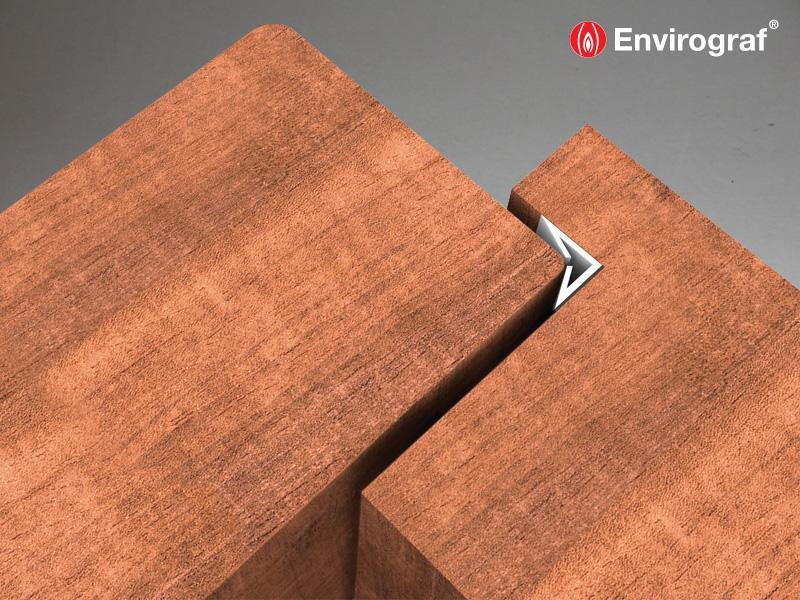

A new type of L-shaped angled strip with fins, offering an effective smoke, draught, weather, and acoustic seal, that will take up the movement of the door. It is also simple to apply. Supplied in 2.2 metre lengths. Fitted into the rebate of door or window frame. Double-sided tape fitted for easy fixing. A most versatile seal.



ADVANTAGES

  • Quick and easy to apply
  • Will accommodate the movement of the door
  • Fitted into the rebate of a door or window frame, with maximum adhesion achieved 72 hours after fitting
  • An economical solution, ideal for public sector housing projects
  • Can be fitted on all internal and external doors



FIRE TEST PERFORMANCE

ENVIROSTRIP/F tested to BS476 Part 22 (1987) achieving an integrity of 30 minutes.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

To fit the self-adhesive seal, simply peel off the backing material to reveal the adhesive tape and press to the rebate of the door or window frame. For extra security additional panel pin fixing may be employed if desired.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD078-10-2014



Application Instructions

AP078-10-2014



COSHH Data

HS078 EnvirostripF-10-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF                        DIMENSIONS FIRE RATING
ENVIROSTRIP       12mm x 12mm x 2200mm N/A
ENVIROSTRIP/F

with fitted intumescent material

12mm x 12mm x 2200mm 30 minutes

Available in Black, Brown, Cream or White
