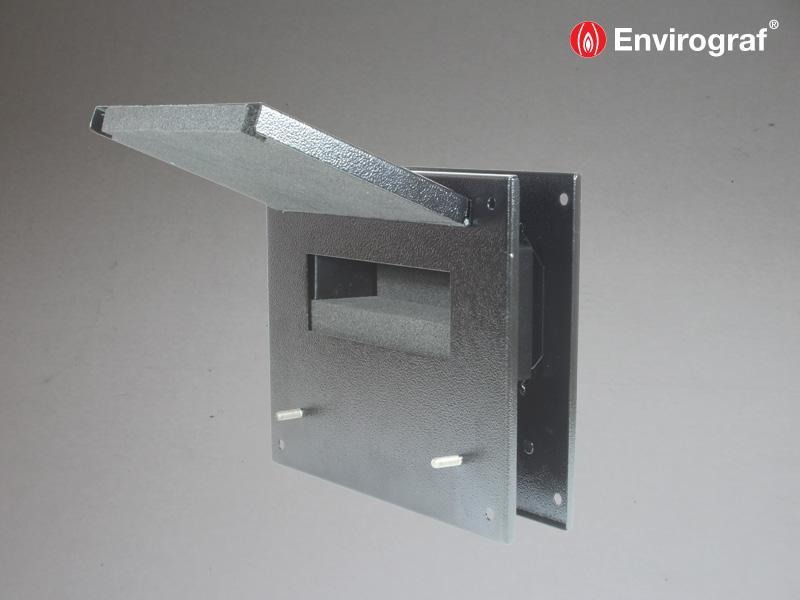

149-Fire_acoustic_cable_management

Fire And Acoustic Cable Management

Fire and sound resistant penetration seal, ideal for cables passing to and from rooms requiring acoustic protection. (PRODUCT 149)

RESET OPTIONS >
REF: PRODUCT 149
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A new system for cable management through openings, providing both fire protection for up to 60 minutes plus acoustic protection. A range of standard options is available. The unit can also be supplied in RAL colour finishes and other sizes can be made — price on application. See new data sheet for more information.



ADVANTAGES

  • Full acoustic protection is provided by the acoustic sponge lining
  • Unit is also lined with intumescent to provide up to 60 minutes fire protection
  • Ideal for use in recording studios, practice rooms, or other soundproofed areas requiring cable access



FIRE TEST PERFORMANCE

Airborne and impact sound insulation tested to BS EN ISO 717-1:1997.

Tested in accordance with NEN 6069, providing up to 60 minutes fire protection plus sound absorption.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

The unit is screwed onto the wall using the screws supplied, either side of the service opening. Multiple cables can be passed through. When cables are removed the sponge will return to its original shape.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD149-10-2014



Application Instructions

AP149-07-2014



COSHH Data

HS149-07-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF EXTERNAL SIZE (WxH) CABLE APERTURE  (WxH) CUT HOLE SIZE (WxH)
CPT1 250mm x 200mm 180mm x 45mm 180mm x 80mm
CPT2 400mm x 200mm 300mm x 45mm 330mm x 80mm
CPT3 250mm x 250mm 150mm x 95mm 180mm x 130mm
CPT4 400mm x 250mm 300mm x 95mm 330mm x 130mm
