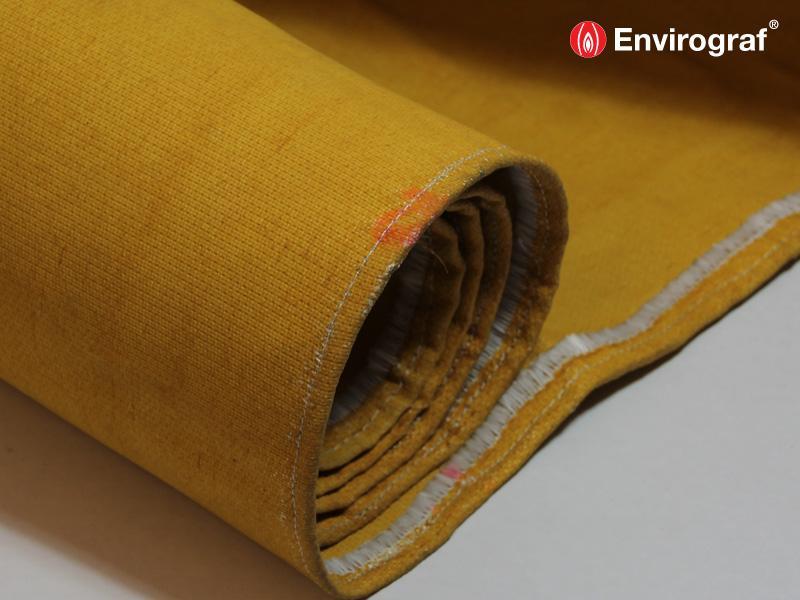

Fire Barrier Curtain With Radiant Heat Protection

Insulated fire and smoke barrier for use over flat surfaces or around protruding services. (PRODUCT 54)

RESET OPTIONS >
REF: PRODUCT 54
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A fire barrier curtain offering up to 100 minutes integrity and 79 minutes of radiant heat protection. It is easy to fit with FBC1 metre-long metal straps (see product 57) with fixing holes pre-drilled 300mm apart, and individual pieces of cloth can be joined at their edges with staples (not supplied) along the length of the join (see diagram below). Made to order.

54-fire-barrier-curtain-diagram



ADVANTAGES

  • Provides up to 87 minutes integrity and insulation- Can be fixed to timber or steel trusses, between concrete soffits and suspended ceilings, or wrapped around metal trunking to upgrade existing fire protection
  • Can be easily wrapped around services or structures and fitted into hard-to-reach areas such as corners
  • Metal fixing straps mean it can be easily affixed to concrete, brick or fibre battens for timber



FIRE TEST PERFORMANCE

IFB1 tested at TRADA to BS476 Part 22 (1987), achieving 77 minutes integrity and insulation.

IFB2 was tested at BTC to BS476 Part 22 (1987), achieving 87 minutes integrity and insulation.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

N/A

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD054-11-2012



Application Instructions

N/A



COSHH Data

HS054-05-2015

HS054-ACOUSTIC-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

STANDARD VERSION

IFB/1 Insulated Fire Barrier One hour 1180mm
IFB/2 Insulated Fire Barrier Two hours 1180mm



VERSION WITH SOUND INSULATION

IFB/1/S Acoustic Fire Barrier One hour 1180mm
IFB/2/S Acoustic Fire Barrier Two hours 1180mm
