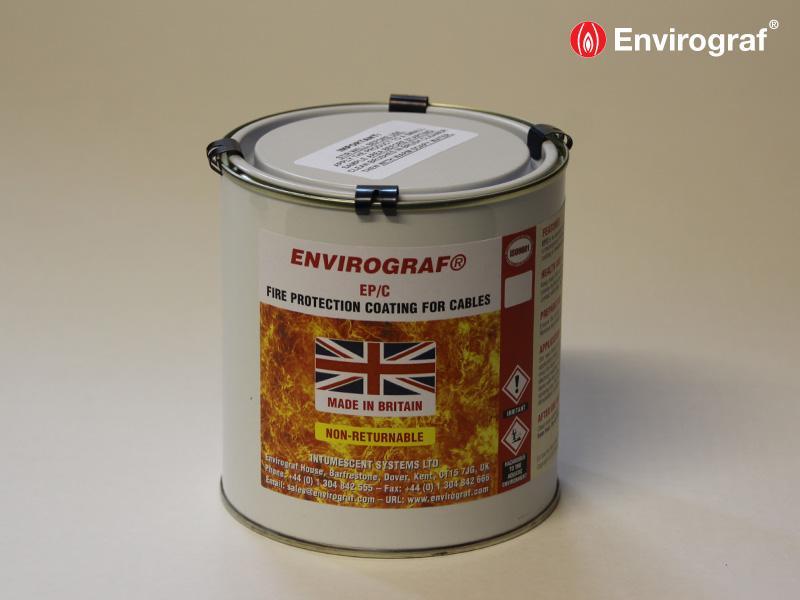

A white odourless paint applied by brushing or spraying, and available in 1, 2½, 5, and 20 litre tubs. One litre covers approximately 1m2 of bunched cables or approx. 20m of 25mm diameter cable. The paint is used for the protection of plastic covered electrical cables to give longer working time in a fire. It prevents PVC fumes and does not have any harmful or insulating effect on working cables. When dry, Envirograf® cable coating is flexible, and will not crack, making it ideal for lift/crane cables etc.
- Has no damaging effect on working cables and will not cause them to overheat from everyday use- Inhibits PVC fumes in the event of a fire
- After application, the coating allows some flexibility without cracking – ideal for cables which require regular maintenance
- Can be easily applied by brush or spray
FIRE TEST PERFORMANCE
Tested to BS476 Part 22 (1987), achieving an integrity of 4 hours. The cables continued to carry current for 97 minutes.
Tested to European Standard EN1363-1 (2000), achieving 2 hours of fire protection.
Ensure surface is dry and grease free. Old peeling paint should be removed completely before application. Stir well before use. Product can be applied using brush or spray. Please observe basic rules for working with paints. Apply at temperatures of over 10ºC and a relative humidity of under 80%. Each litre covers approximately 1m² of bunched cables or approximately 20m of 25mm diameter cable. Up to 10% water dilution allowed when spraying but ensure correct loadings are applied to area to give maximum fire protection – please contact the technical department for further information. Drying time: Dries in approximately 1 hour. Thoroughly dry after 24-48 hours depending on the temperature of the surrounding.
