Fire Protection Supports

Fire resistant fixing system to hold cables in place in a fire, stopping them from becoming a hazard. (PRODUCT 153)

RESET OPTIONS >
REF: PRODUCT 153
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

This new range of fire protection supports is intended to keep electrical cables, conduits, trunking, etc, well away from the escape routes in buildings in the event of a fire, so that they do not drop down and obstruct escaping personnel or working fire officers. See separate data sheet.



ADVANTAGES

  • Designed to hold cables in a variety of casings in place in a fire, preventing them from falling to the ground and becoming a hazard for firefighter
  • Ideal for use in areas such as access routes, which may become hazardous should cables fall to the ground
  • Easily installed; metal keyhole fixings at either end fix to the wall above and below the trunking, conduit or cables to be supported
  • A smaller clip is available which folds around conduits or armoured cables with the keyhole fixings screwed in place above as support



FIRE TEST PERFORMANCE

Complies with the codes of practice BS 5839-1 and BS 7671.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

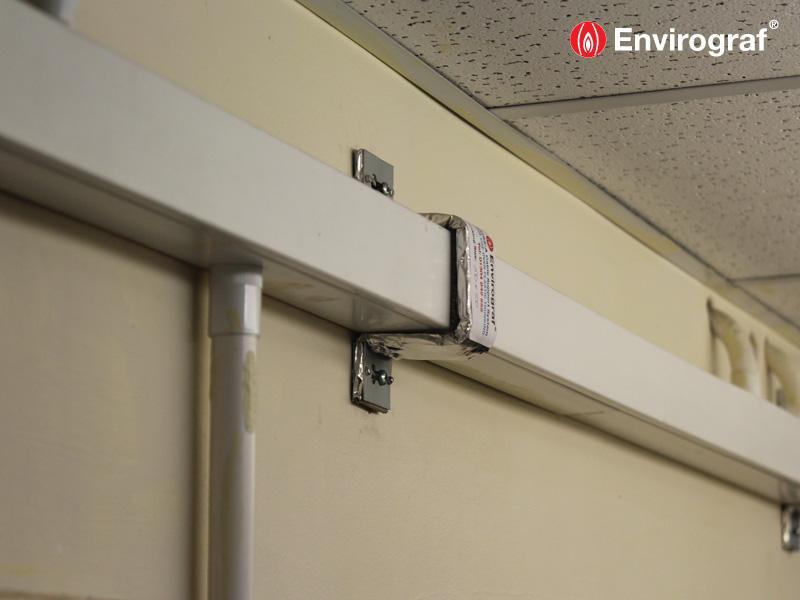

The FCSS clips are fixed in place at regular intervals along plastic trunking, tubing or armoured cables using the keyhole fixings provided. It is important to ensure clips are fitted where cables pass above doorways and other access routes to keep them clear in the event of a fire. The system allows easy access to the cables. Simply loosen the screws and open the clips for maintenance.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD153-FCSS-07-2014



Application Instructions

AP153-FCSS-07-2014



COSHH Data

HS153-07-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

SUPPORTS FOR TRUNKING

REF SIZE
FCSS/A/50 50mm
FCSS/A/75 75mm
FCSS/A/100 100mm
FCSS/A/150 150mm



SUPPORTS FOR CABLES OVER SUSPENDED CEILINGS

REF SIZE
FCSS/B/300 300mm



SUPPORTS FOR PLASTIC CONDUITS AND SMALL ARMOURED CABLES

REF SIZE
FCSS/C/30 30mm
FCSS/C/50 50mm



SUPPORTS FOR LARGE ARMOURED CABLES

Ref Size
FCSS/D/60 60mm
FCSS/D/80 80mm
FCSS/D/100 100mm
FCSS/D/150 150mm
