Fireproof Sponge And Profile Sponge

Sheets of fire resistant sponge, ideal for use under roofing sheets. (PRODUCT 41)

RESET OPTIONS >
    Reset options

    When ordering more than 1 linear metre you can choose it to be supplied in 1m or 2m lengths.

    When ordering more than 1 square metre you can choose it to be supplied in 1m x 1m or 1 m x 2m sheets.

REF: PRODUCT 41
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

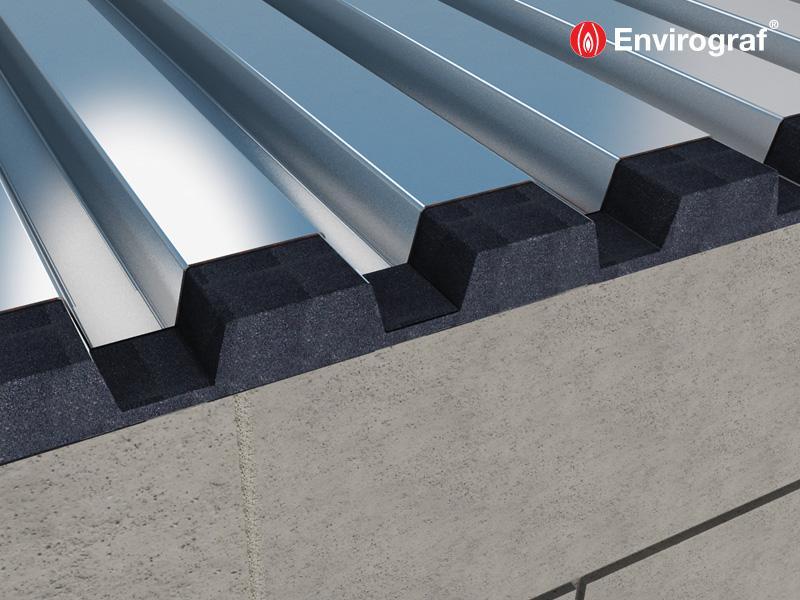

This sponge will not bum, just char. Can be cut to shape or supplied ready-profiled for use between shaped roofing sheets and RSJs or walls etc. Supplied in 1m or 2m lengths. Envirograf® Fire Sponge is ideal as a filler for large areas where Envirograf® intumescent ready-mixed cement is being used, see Product 63. Please state if required in 1m or 2m lengths. The sponge can be used under roofing sheets, between walls and floors, or as packing around small openings and can be faced with Envirograf® CF Cement Filler (product 63). The sponge is also available in sheets.



ADVANTAGES

  • Provides up to 138 minutes fire protection- Can be cut to various profiles and used under roofing sheets as a fire break
  • Ideal for use between walls and floors, or packed around small openings as a penetration seal
  • Can be faced with Cement Filler (Product 63) to provide an even more effective seal



FIRE TEST PERFORMANCE

Tested to BS476 Part 22 (1987), achieving an integrity of 138 minutes.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

N/A

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD041-12-2013



Application Instructions

AP041-11-2015



COSHH Data

HS041-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

PRICE PER LINEAR METRE

REF Size in mm
F1020 10 x 20
F1030 10 x 30
F2020 20 x 20
F2030 20 x 30
F3030 30 x 30
F4030 40 x 30
F5030 50 x 30
F5050 50 x 50
F6030 60 x 30
F6060 60 x 60
F7040 70 x 40
F7030 70 x 30
F10040 100 x 40

Other sizes made to order



Larger F sponge in sheet form – 1 metre x 1 metre and 1 metre x 2 metre. For ½ hour – 30mm into wall. For 1 hour – 50mm into the wall. For 2 hours – 70mm into the wall. For 4 hours – 100mm into the wall.



 PRICE PER SQUARE METRE

 THICKNESS
10mm
15mm
20mm
25mm
30mm
40mm
50mm
60mm

 Can be supplied in greater thickness



FIRE PROOF PROFILE FOR STEEL CLADDING

For profile sections either cut to size, ready to fit for one hour and two hour protection, or in one metre lengths for one or two hour protection to cut on site to the required depth. Just compress and fit into the opening. The sponge can be used under roofing sheets, between walls and floors, or as packing around small openings and can be faced with Envirograf® CF Cement Filler (Product 63). The sponge is also available in sheet form.

REF PROTECTION A B C D
MPF 1 hour 30mm 70mm 60mm 40mm
MPF/2 2 hours 30mm 70mm 60mm 40mm
MPFX 2 hour 30mm 70mm 60mm 1000mm



41-fireproof-sponge-diagram

A             Horizontal width at the top of the profile

B             Horizontal width at the bottom of the profile

C             Vertical height between top and bottom surfaces

D             Depth:

for one hour protection this is 40mm (MPF)

for two hours protection this is also 40mm (MPF/2) but is

supplied with a white coating on one face.



MPFX is for one hour protection only and is supplied in one metre lengths (D = 1000mm).

For special sponge profiles in 1 metre lengths, state the measurements A, B, and C when contacting the sales department.
