Hinge, Lock and Door Closer Protection

Flexible intumescent sheet used to protect metal hinges, locks and door closers in a fire. (PRODUCT 71)

RESET OPTIONS >
    Reset options
REF: PRODUCT 71
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A 1mm thick, flexible, intumescent protection sheet, unaffected by moisture. Supplied in standard sizes. For use behind hinges and steel door closers and around lock areas which require protection on a fire rated door. When installed the sheet compress without compromising its protective qualities, unlike mastic which is ineffective for hinge, lock, and door closure protection.



ADVANTAGES

  • Supplied in standard sizes to make installation quick and convenient- Protects metalwork on doors for up to 91 minutes
  • Intumescent paper cools the lock, hinges, and screws and protects them from overheating in the event of a fire
  • Self-closing hinges can be individually adjusted, for example to have more tension, or to allow for buckled door tops



FIRE TEST PERFORMANCE

Tested BS476 Part 22 (1987) for 91 minutes with no integrity failure being recorded.

Tested to EN1634-1 (2000), achieving 68 minutes integrity.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

HINGE, LOCK AND DOOR CLOSER PROTECTION:

HINGES: Remove hinges from both door and frame, cut the cut the Envirograf® intumescent paper to size to size, sandwich it between hinge and rebate on both door and frame then screw the hinges back.

LOCK AND KEEP: Remove lock, cut the Envirograf® intumescent paper to size, wrap it around the lock and sandwich it
between the lock and door as you replace the lock. Place paper under the keep plate as well.

DOOR CLOSER: Before fitting a door closer sandwich pre-cut cut the Envirograf® intumescent paper between the closer
and the door face then fasten the closer to the door. When ordering state the size of intumescent paper required for your door closer.

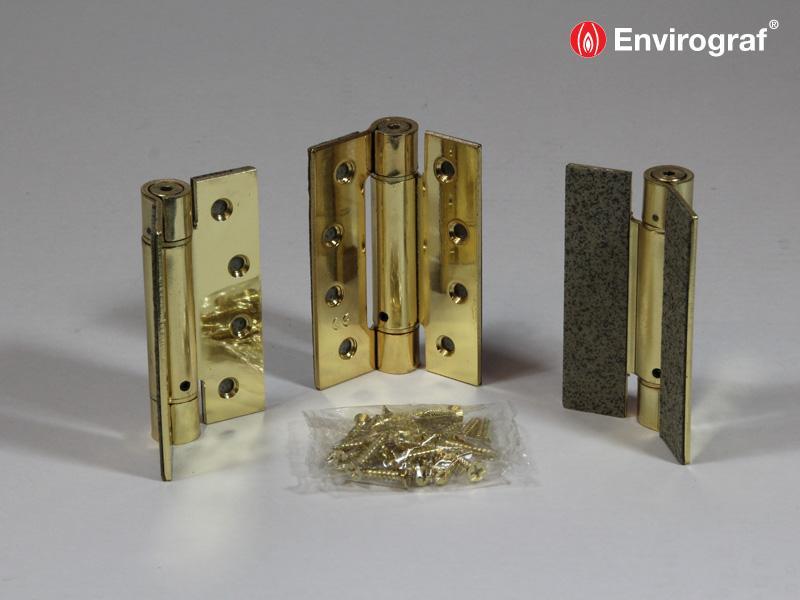

SELF CLOSING HINGES: DO NOT peel off the grey intumescent paper on the back of the hinges: it is an essential part
of the fire protection product! Ensure there is a gap of 3½ – 4mm at the head and closing side and a 1mm gap on the hinge
side. Fit the hinges to the door and frame and see whether the door closes without adjustment If adjustment is required, then adjust the top and bottom hinges with the larger Allen key to close the door fully onto the seals without slamming. Then insert the grub screw into the threaded hole and tighten fully with the smaller Allen key. Adjust the centre hinge slightly tighter than the other two hinges to latch.

Allen keys and screws are supplied with the set of three hinges.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD071-Hinge-lock-door-closer-01-2014

TD071-Self-closing-hinges-01-2014



Application Instructions

AP071-Hinge-lock-door-closer-01-2014

AP071-Self-closing-hinges-01-2014



COSHH Data

HS071-ALL-01-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF PROTECTION SHEET
HP32 32mm x 300mm
HP36 36mm x 300mm
HP48 48mm x 300mm
HP300 300mm x 300mm
LPH 150mm x 225mm (For Lock Areas)

Other sizes available



SELF-CLOSING DOOR HINGES  (FOR INTERNAL USE ONLY)

 REF DOOR HINGES
SCH Set of 3 Hinges, including screws

Chrome, white, brown, antique brass, polished brass, and stainless steel finishes



REF SCREW PLUGS
ES/PLUG 38mm x 6mm intumescent-filled plastic plug for hinge screws offering 60 minutes protection
