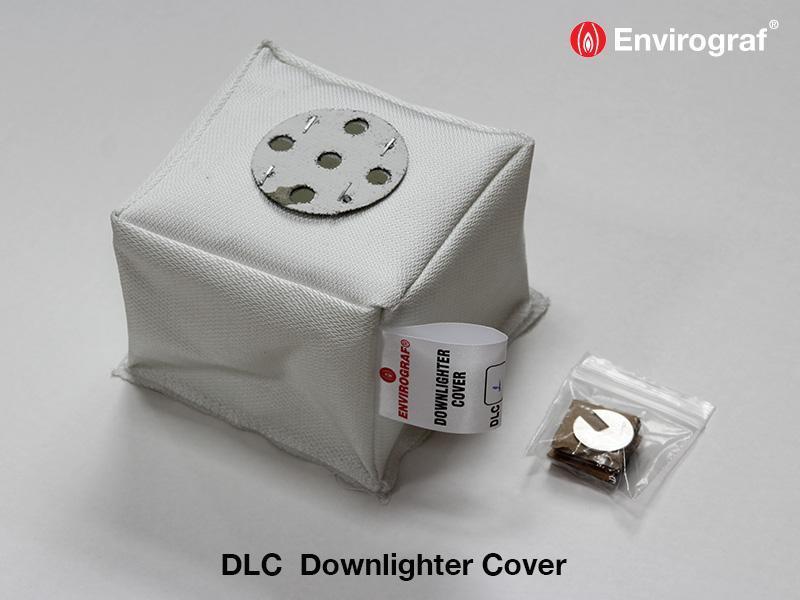

Intumescent Downlighter Covers

A range of fire resistant covers for light fittings. (PRODUCT 32)

RESET OPTIONS >
REF: PRODUCT 32
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

With the increased use of downlighters, the integrity of the plasterboard and suspended ceilings can be reduced to approximately 4 minutes protection. Envirograf® Downlighter Covers are used to restore the integrity required by British Standard Regulation requirement. The covers are available in many standard sizes, others can be made to order in approximately four days. They are easily installed in about five minutes from below or above the ceiling. With cable entries on top, the intumescent covers are ventilated to avoid light fittings overheating. For use over downlighters and speakers, etc, where the integrity of fire-rated ceilings must be maintained.



ADVANTAGES

  • Maintains the fire rating of plasterboard or suspended ceilings rated up to 4 hours

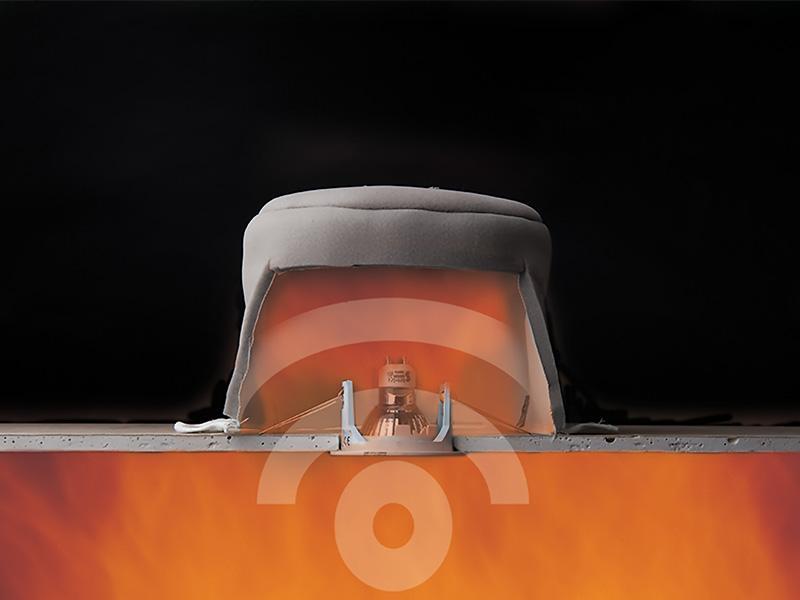

  • Available in standard and acoustic forms, preventing sound transfer from different floors of a building up to 63dB
  • Can be made to accommodate downlighters alone, or downlighter/transformer combos
  • Downlighter cages are a sturdier option, allowing for insulation to be laid over the top after they are fixed in place – ideal for lofts
  • Can be used to improve the fire rating of ceiling-mounted speakers as well as downlighters
  • The range also contains downlighter adaptors which can convert existing light fittings to fire resistant, low-energy units, saving up to 40W per light whilst providing 66 minutes of fire protection
  • Easily installed in 5 minutes or less
  • Custom sizes made to order



FIRE TEST PERFORMANCE

Tested to BS476 Parts 22 & 23, achieving up to 240 minutes integrity.

Acoustic properties tested to BS EN ISO 140-3 (63dB).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Lead the cable from the transformer through the pre-cut downlight aperture in the ceiling.  Pierce the cable entry point in the top of the cover with a sharp object, creating an opening large enough to suit the cable size.  Feed sufficient cable through the opening for the connection.  Compress the cover and pass it through the aperture in the ceiling.  Open out the cover once inside the ceiling, away from the light fitting.  Using the two supplied pins, fasten opposite inner flanges of the cover to the plasterboard.  Insert the light fitting and fasten the closing mechanism over the inner flaps of the downlighter cover to seal the opening. Downlighter covers require a minimum of 40mm horizontal clearance and 15mm vertical clearance.  Cages are rigid and require no clearance, meaning that insulation can be packed around them as long as it does not cover the ventilation holes

NB: Downlighter cages cannot be compressed to fit through the light fitting aperture from below and must therefore be positioned from above

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD032-03-2013

TD032A-03-2013



Application Instructions

AP032-03-2013

AP032A-03-2013



COSHH Data

HS032-05-2015

HS032-ACOUSTIC-05-2015

HS032-Acoustic-Speaker-Cover-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

REGULAR

REF LENGTH/WIDTH/HEIGHT (mm)
DLC0 150 x 150 x 120
DLC1 130 x 130 x 070
DLC2 130 x 130 x 100
DLC3 130 x 130 x 140
DLC4 180 x 180 x 130
DLC5 180 x 180 x 170
DLC6 260 x 260 x 120
DLC7 260 x 260 x 230
DLC8 300 x 300 x 170
DLC9 350 x 350 x 230



ACOUSTIC

REF DIAM/HEIGHT (mm)
DLC 0/AC 150 x 120
DLC 1/AC 130 x 070
DLC 2/AC 130 x 100
DLC 3/AC 130 x 140
DLC 4/AC 180 x 130
DLC 5/AC 180 x 170
DLC 6/AC 260 x 120
DLC 7/AC 260 x 230
DLC 8/AC 300 x 170
DLC 9/AC 350 x 230



If an acoustic cover is required for loft areas, please add /L to the order reference eg: DLC3/AC/L

Please allow the following MINIMUM clearances for products shown above: 40mm horizontal and 15mm vertical around the fitting.



FOR LOW VOLTAGE DOWNLIGHTERS AND TRANSFORMERS TOGETHER

REGULAR 60 MINUTES

REF LENGTH/WIDTH/HEIGHT mm
DSLVA    300 x 100 x 120
DSLVB  300 x 180 x 140
DSLVC 300 x 220 x 140
DSLVD 300 x 300 x 140
DSLVF 450 x 290 x 150
DSLVG 475 x 320 x 215
DSLVO   400 x 250 x 200



ACOUSTIC 60 MINUTES

REF LENGTH/WIDTH/HEIGHT mm
DSLVA/AC  320 x 120 x 140
DSLVB/AC 320 x 200 x 160
DSLVC/AC    320 x 240 x 160
DSLVD/AC    320 x 320 x 160
DSLVO/AC 400 x 250 x 200

 Other sizes made to order



INTUMESCENT DOWNLIGHTER ADAPTERS

An Envirograf® retro-fitting adaptor has been developed to convert your existing downlighter fittings into low-energy units, potentially saving up to 40W per light, whilst simultaneously providing 66 minutes of fire protection. Made to order.

REF
DA1 Supplied with a standard white lamp holder with an earth terminal
DA2 Supplied with a brass lamp holder including earth terminal

When ordering, please specify the original light fitting’s product name and code or send a sample of the fitting.

Low-energy lamp bulbs are not supplied with the lamp holders.

Add suffix /BC (bayonet cap) or /ES (Edison screw) to the reference for the appropriate type of fitting required.



INTUMESCENT FIRE CAGES

The fire cage has the same use as a downlighter cover. There are two types available: –

STANDARD RANGE (for standard light fittings only)

TRANSFORMER RANGE  (for light fittings including transformers)

The cage can only be fitted from above on fixed ceilings, and from above and below on suspended ceilings



REGULAR  STANDARD LIGHT FITTING

Fire Cage (Ridgid)
REF LENGTH WIDTH HEIGHT
FC 1 150mm 150mm 120mm
FC 2 150mm 150mm 170mm
FC 3 200mm 200mm 120mm
FC 4 200mm 200mm 170mm
FC 5 260mm 260mm 120mm
FC 6 260mm 260mm 170mm
FC 7 260mm 260mm 230mm
FC 8 300mm 300mm 120mm
FC 9 300mm 300mm 230mm
FC 10 350mm 350mm 175mm



REGULAR  LIGHT FITTING AND TRANSFORMER COMBINED

 Fire Cage (Ridgid)
REF LENGTH WIDTH HEIGHT
FC1R 325mm 150mm 120mm
FC2R 325mm 150mm 170mm
FC3R 375mm 200mm 120mm
FC4R 375mm 200mm 170mm
FC5R 435mm 260mm 120mm
FC6R 435mm 260mm 170mm
FC7R 435mm 260mm 230mm
FC8R 475mm 300mm 120mm
FC9R 475mm 300mm 230mm
FC10R 525mm 350mm 175mm



ACOUSTIC STANDARD LIGHT FITTING

REF LENGTH WIDTH HEIGHT
FC 1/AC 190mm 190mm 140mm
FC 2/AC 190mm 190mm 190mm
FC 3/AC 240mm 240mm 140mm
FC 4/AC 240mm 240mm 190mm
FC 5/AC 300mm 300mm 140mm
FC 6/AC 300mm 300mm 190mm
FC 7/AC 300mm 300mm 250mm
FC 8/AC 340mm 340mm 140mm
FC 9/AC 340mm 340mm 250mm
FC10/AC 390mm 390mm 195mm



ACOUSTIC  LIGHT FITTING AND TRANSFORMER COMBINED

REF LENGTH WIDTH HEIGHT
FC1R/AC 365mm 190mm 140mm
FC2R/AC 365mm 190mm 190mm
FC3R/AC 415mm 240mm 140mm
FC4R/AC 415mm 240mm 190mm
FC5R/AC 475mm 300mm 140mm
FC6R/AC 475mm 300mm 190mm
FC7R/AC 475mm 300mm 250mm
FC8R/AC 515mm 340mm 140mm
FC9R/AC 515mm 340mm 250mm
FC10R/AC 565mm 390mm 195mm
