Intumescent Fan Covers

Fire and smoke resistant housing for both wall and window-mounted fan units. (PRODUCT 14)

RESET OPTIONS >
REF: PRODUCT 14
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

An intumescent grille unit available in two types: wall mounted and glass mounted. Available in brown or white. Other colours and sizes made to order. Intumescent fan cover units can be installed over Vent-Axia, Xpelair or other makes of wall or window fans, giving fire and smoke protection to escape corridors and staircase fire escapes. FCW = Wall mounted / FCG = Glass mounted.



ADVANTAGES

  • For use with electrical ventilation extractor units installed in fire barrier walls or glazing systems, providing up to 73 minutes integrity
  • Can be installed over most leading makes of electric fan, including VentAxia, Xpelair and more
  • Can be supplied with smoke shutters activated by 24V electromagnet with auto-reset solenoid
  • Provides fire and smoke protection, ideal for use in escape corridors and staircase fire escapes



FIRE TEST PERFORMANCE

Contains a front MG grille, tested to BS476 Parts 20 & 22 (1987), achieving up to 73 minutes integrity.

Tested at VNE to European Standard EN1363-1 (2000).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

The wall-mounted unit simply fits over the fan unit, offering one hour fire protection. This can be fixed to brick, block or concrete using raw plugs & steel screws (32mm No8 or No10 screws or small rawl bolts).  For plasterboard or lath & plaster walls before the plasterboard is applied metal or timber fixings can be allowed for while building, otherwise if fixing to existing walls or ceilings use steel butterfly toggle bolts The glass mounted unit consists of two plates, that are fitted to either side of the glass, between the internal rear section of the fan and the external front section. The fan unit is then constructed and fixed as usual around the plates. The grille unit is attached to the externally fitted plate with self tapping screws.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD014-10-2012



Application Instructions

AP014-07-2013



COSHH Data

HS014-10-2012

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF A B C DIAM
FCG5 315mm 315mm 150mm 260mm
FCG10 285mm 285mm 140mm 222mm
FCG12 390mm 390mm 170mm 337mm
FCG14 210mm 210mm 50mm 110mm
FCG19 430mm 430mm 200mm
FCW1 310mm 310mm 20mm
FCW5 315mm 315mm 150mm
FCW10 285mm 285mm 140mm
FCW12 390mm 390mm 170mm
FCW14 430mm 430mm 40mm
FCW18 210mm 210mm 50mm
FCW19 430mm 430mm 187mm
FCW20 458mm 429mm 30mm

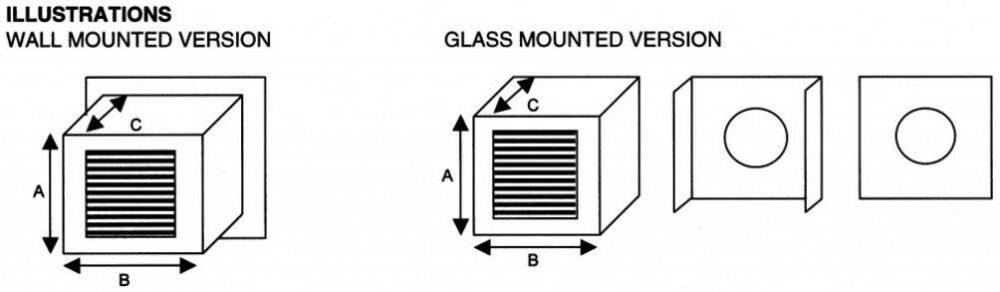

Product-14-Diagram



For use with Vent-Axia, Expelair and other fan types. Please contact Technical Department for further information.
