Intumescent-Impregnated Fireproof Sponge

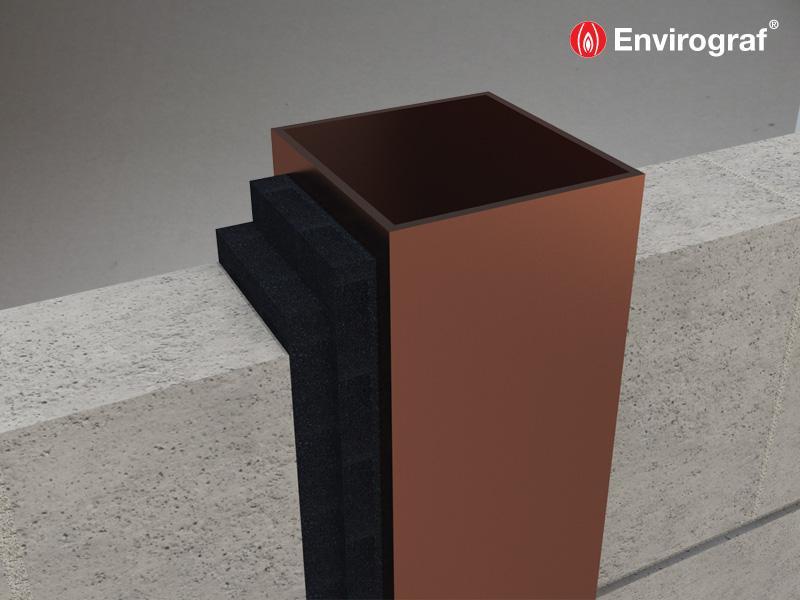

Flexible intumescent-coated sponge for fire-stopping a wide range of apertures. (PRODUCT 40)

RESET OPTIONS >
REF: PRODUCT 40
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A new type of expansion joint, where the sponge is impregnated with a fireproof material, giving 1 hour and 2 hours of fire protection. Can be supplied in 1m x 1m and 1m x 2m sheets, or can be cut to size up to the sheet size. For use under raised floors in computer suites or hospitals, as non-fibrous sponge, which will expand around cables and services in a fire, giving a smoke/gas and fire seal.



ADVANTAGES

  • Provides 1-2 hours integrity, dependent on thickness- Available in a range of thicknesses from 10mm-60mm
  • Can be used as an expansion joint in fire walls, floors, concrete slabs and steelwork
  • Non-fibrous sponge, ideal for under raised floors in computer suites and in hospitals
  • Sponge will expand in a fire, making it an ideal seal for service penetrations through a range of substrates
  • Installing at a depth of 30mm into the wall will achieve 1 hour fire protection, where at a 40mm depth it achieves 2 hours fire protection



FIRE TEST PERFORMANCE

Tested to BS476 Part 22 (1987), achieving 138 minutes integrity.

Tested at VNE to European Standard EN1363-1 (2000).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

N/A

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD040-12-2013



Application Instructions

AP040-11-2015



COSHH Data

HS040-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

ONE HOUR PROTECTION

1m LENGTH

  (Into wall)
REF DEPTH THICKNESS GAP SIZE
FCS1/30/10 30mm 10mm 2 – 10mm
FCS1/30/15 30mm 15mm 2 – 15mm
FCS1/30/20 30mm 20mm 10 – 20mm
FCS1/30/25 30mm 25mm 15 – 25mm
FCS1/30/30 30mm 30mm 20 – 30mm
FCS1/30/40 30mm 40mm 30 – 40mm
FCS1/30/50 30mm 50mm 40 – 50mm
FCS1/30/60 30mm 60mm 50 – 60mm



TWO HOURS PROTECTION

1m LENGTH

  (Into wall)
REF DEPTH THICKNESS GAP SIZE
FCS2/40/10 40mm 10mm 2 – 10mm
FCS2/40/15 40mm 15mm 5 – 15mm
FCS2/40/20 40mm 20mm 10 – 20mm
FCS2/40/25 40mm 25mm 15 – 25mm
FCS2/40/30 40mm 30mm 20 – 30mm
FCS2/40/40 40mm 40mm 30 – 40mm
FCS2/40/50 40mm 50mm 40 – 50mm
FCS2/40/60 40mm 60mm 50 – 60mm
FCS200/20 20mm 200mm
FCS200/30 30mm 200mm



1m x 1m

REF THICKNESS
FCS 10 10mm
FCS 15 15mm
FCS 20 20mm
FCS 25 25mm
FCS 30 30mm
FCS 40 40mm
FCS 50 50mm
FCS 60 60mm
