Intumescent Material To Fit Under Door Edging

Adhesive intumescent fire seal to fit under existing door edging. (PRODUCT 102)

RESET OPTIONS >
REF: PRODUCT 102
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

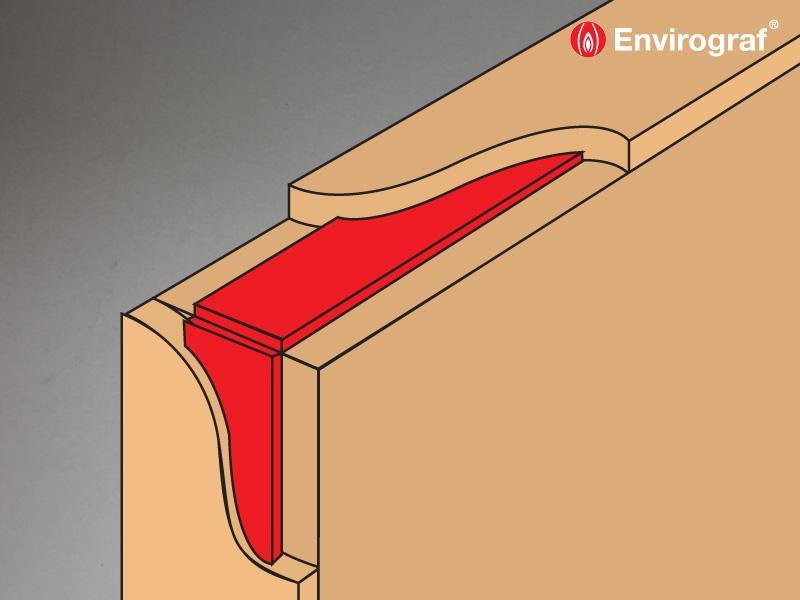

A 2mm thick intumescent strip applied with double-sided tape to place under hardwood lipping on doors. The strip is fitted to the underlipping on either the door or the frame. Tested to BS476: Part 22: 1987. Supplied in 10m Rolls.



ADVANTAGES

  • Intumescent material is protected from damage as it is fitted underneath the door edging
  • Intumescent will expand in a fire, pushing the door edging outwards and sealing the gaps around the door on all sides



FIRE TEST PERFORMANCE

Tested to BS476 Part 22 (1987), achieving an integrity of up to 60 minutes.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Peel off backing paper and apply strip to underside of the hardwood lip on the edges of the door.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD102-10-2014



Application Instructions

AP102-10-2014



COSHH Data

HS102-10-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF WIDTH FIRE RATING MAXIMUM DOOR THICKNESS
ES/UL25 25mm 30 minutes 25mm
ES/UL30 30mm 60 minutes 44mm
ES/UL34 35mm 60 minutes 50mm and above

The above items are supplied in 10m rolls as standard.
