Intumescent Pipe Collar

Sturdy metal collar to fire seal openings around pipe and cables. (PRODUCT 13)

RESET OPTIONS >
REF: PRODUCT 13
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

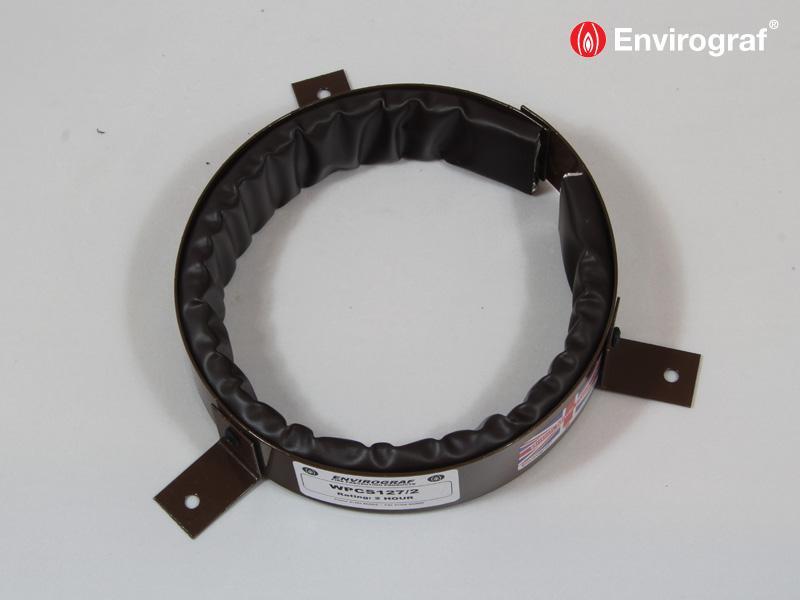

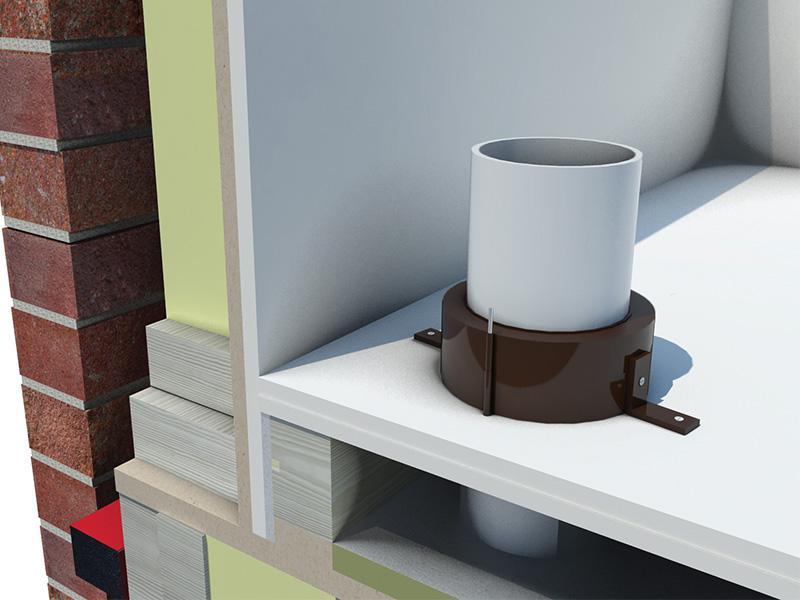

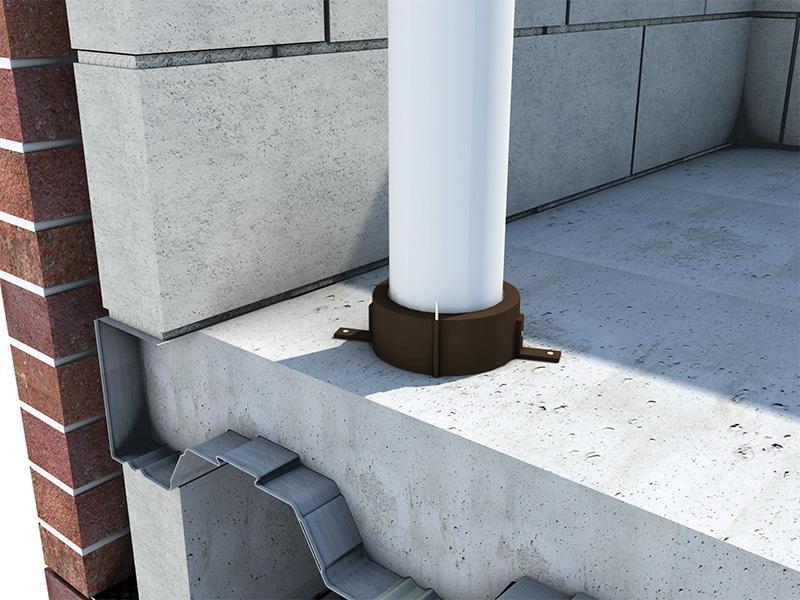

A circular metal collar with an intumescent lining, giving 1 to 4 hours protection to pipes from 45mm to 650mm diameter. The fixing brackets can be twisted around to fix into different positions and can be pressed flat to fix to walls or ceilings. Extra holes are provided to move the fixing brackets to other positions.



ADVANTAGES

  • Due to its heavy duty nature, it is a great fit for industrial buildings
  • Provides up to 4 hours fire protection for pipes from 45mm-650mm in diameter
  • Acoustic version offers both airborne and impact sound protection
  • Adjustable brackets allow for fitting in hard-to-access areas



FIRE TEST PERFORMANCE

Tested to BS476 Parts 20, 21 & 22 (1987), giving up to 4 hours of fire protection.

Also tested at VNE to European Standard EN1363-1 (2000).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Prior to fixing, please ensure:

  • Access for fitting is available
  • Correct area of risk is assessed (double-risk areas may require two collars
  • Correct size of collar appropriate to the pipe or service being protected



(See also Envirograf® Product 110 for hollow wall fixing)

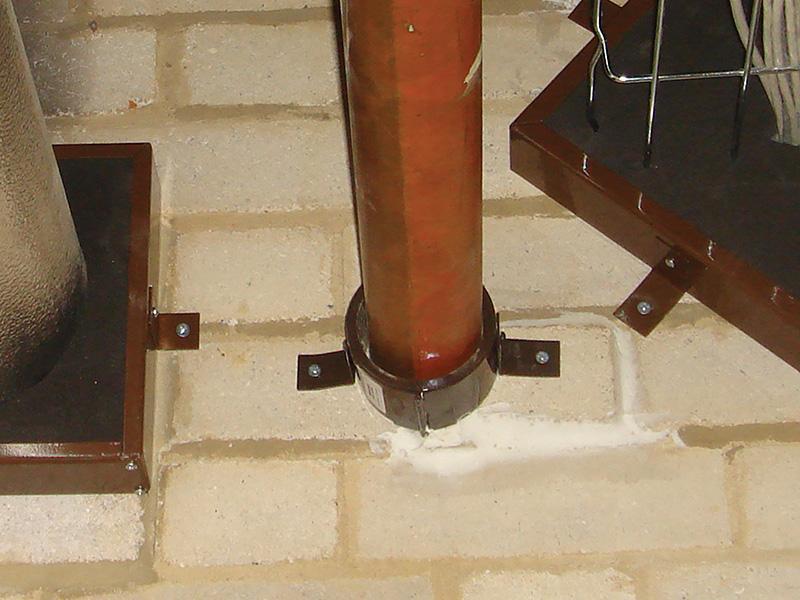

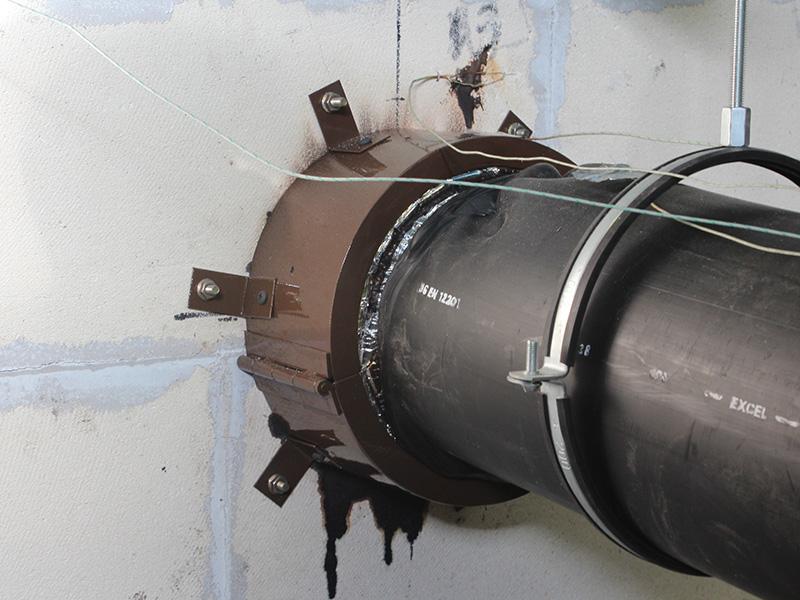

The product must be installed correctly. Fixing lugs are already fitted to WPCS collars. They can be fixed to solid structures with raw plugs with screws.  It is recommended that you pump a spot of Envirograf product 58 (Intumescent Mastic) into the previously drilled hole. For hollow plasterboard walls, fix with screws if there are timber noggins to fix to, otherwise use steel toggle fixings. If WPCS are to be fitted into an area where no noggins or blockwork to attach to, the lugs can be re-attached to another part of the WPCS by drilling 1.5mm holes into the side of the collar and screw into collar. WPCS’s MUST be securely fixed.

Please Note: WPCS/C for ceiling application is only available from 2 hours protection upwards.

WPCS/C comes with hinge and pin opening.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD013-09-2012



Application Instructions

AP013-02-2017



COSHH Data

HS013-12-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
 REF MAXIMUM PIPE SIZE INTERNAL DIAMETER PIPE SIZE EXTERNAL DIAMETER EXTERNAL COLLAR DIAMETER
WPCS 45 045mm 047mm 059mm
WPCS 55 055mm 057mm 069mm
WPCS 65 065mm 074mm 086mm
WPCS 75 075mm 087mm 103mm
WPCS100 100mm 117mm 137mm
WPCS127 127mm 137mm 161mm
WPCS150 150mm 167mm 195mm
WPCS175 175mm 187mm 219mm
WPCS200 200mm 212mm 248mm
WPCS225 225mm 237mm 273mm
WPCS250 250mm 267mm 311mm
WPCS300 300mm 317mm 369mm
WPCS350 350mm 365mm 421mm
WPCS400 400mm 422mm 486mm
WPCS450 450mm 487mm 563mm
WPCS500 500mm 527mm 607mm
WPCS550* 550mm 587mm 679mm
WPCS600* 600mm 627mm 723mm
WPCS650* 650mm 687mm 791mm



Available in range of depths from 30mm to 80mm deep, as well as fire rating from 1 hour to 4 hours rating.

Sizes marked with an asterisk* are made-to-order items. NB: WPCS—/1 = 1 hour; WPCS—/2 = 2 hours; WPCS—/4 = 4 hours

Please Note: WPCS/C for ceiling application is only available from 2 hours protection upwards.

WPCS/C comes with hinge and pin opening.



IMPORTANT

Please note that external pipe diameters may vary between different manufacturers and systems, and ambient temperature also affects dimensions. Please select the collar size most appropriate for your application, allowing a small clearance for ease of fitting. A close fitting between the collar and the pipe surface should be the aim, but the collar should not be unduly strained in order to close it around the pipe. A fireproof sponge filler strip can be provided upon request for special applications. Please enquire with details of your application for technical advice.



“Maximum external pipe diameter” was previously listed as “internal collar diameter”
