Intumescent Sleeve For Pipes And Cables

Intumescent sleeves to protect services passing through fire-rated ceilings, floors and walls. (PRODUCT 110)

RESET OPTIONS >
    Reset options
REF: PRODUCT 110A
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

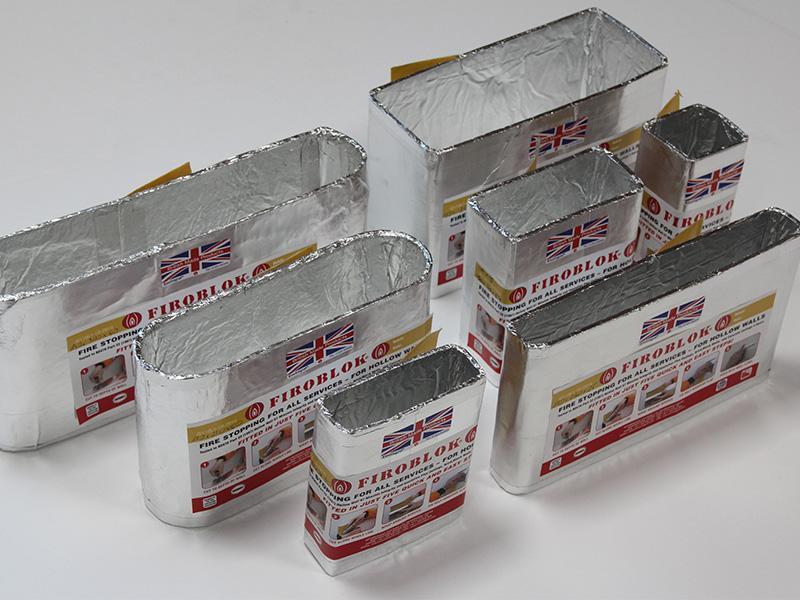

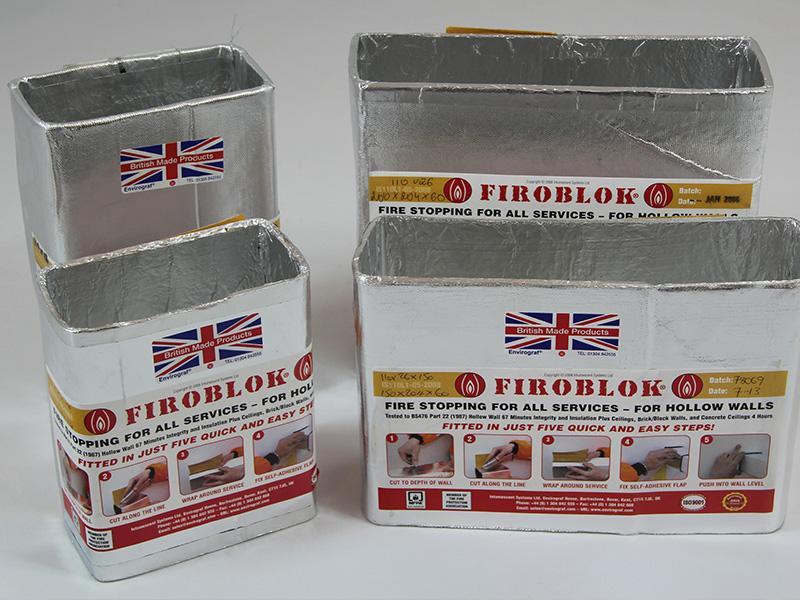

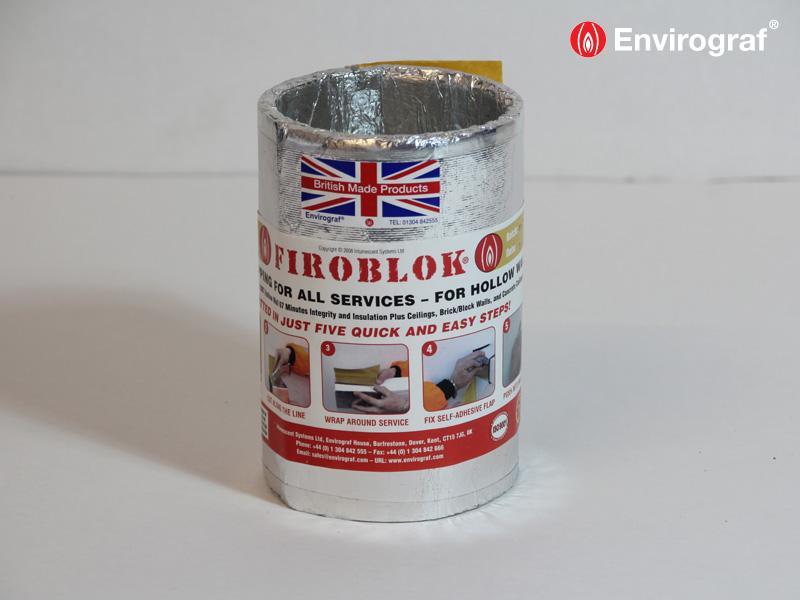

Envirograf® wall sleeves are made of a fibre-free intumescent material which allows for the natural expansion and contraction of pipes and also gives protection from corrosion caused by contact with cement blocks, cement, plaster, or other materials. Available in 500mm lengths — the sleeves can easily be cut with a sharp knife and off cuts can be joined together with tape. In a fire, all sizes of these intumescent sleeves are designed to expand to completely seal the gap between the pipe and wall. For pipes passing through fire rated walls and ceilings that must be allowed to expand and contract, e.g. hot water / gas pipes. Also for use in brick, block, concrete, and hollow walls or floors. For Firoblok sleeve for ventilation and fans, please see product 33.



ADVANTAGES

  • No more corrosion problems due to copper pipes having contact with concrete surfaces
  • Meets all regulations
  • Allows for expansion and contraction of hot pipes and gives up to four hours protection
  • Easy to cut; no more sawing and de-burring steel pipe
  • Can be cut with a knife and off-cuts can be taped together, leaving no waste
  • Will last a lifetime in-situ and will not degrade or deteriorate



FIRE TEST PERFORMANCE

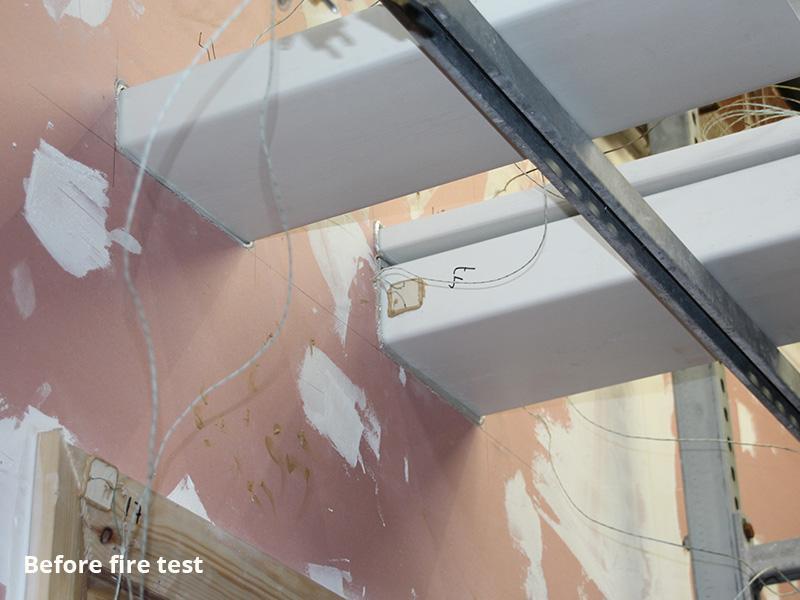

Tested to BS476 Part 22 (1987), achieving an integrity of 130 minutes in solid walls, 67 minutes in hollow walls, and 4 hours in concrete/block ceilings and walls.

Tested to European Standards EN1366-3 (2005), EN1363-1 (2000), and EN13501-2 (2004).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Mark the outline for the Firoblok sleeve on the substrate.  Cut out the hole with a powered hole cutter or padsaw and clean down edges. Fit the Firoblok sleeve over the vent and fit to the ducting or service passing through.  Push the assembly back into the substrate until flush.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD110-05-2013



Application Instructions

AP110-03-2013



COSHH Data

HS110-03-2013

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

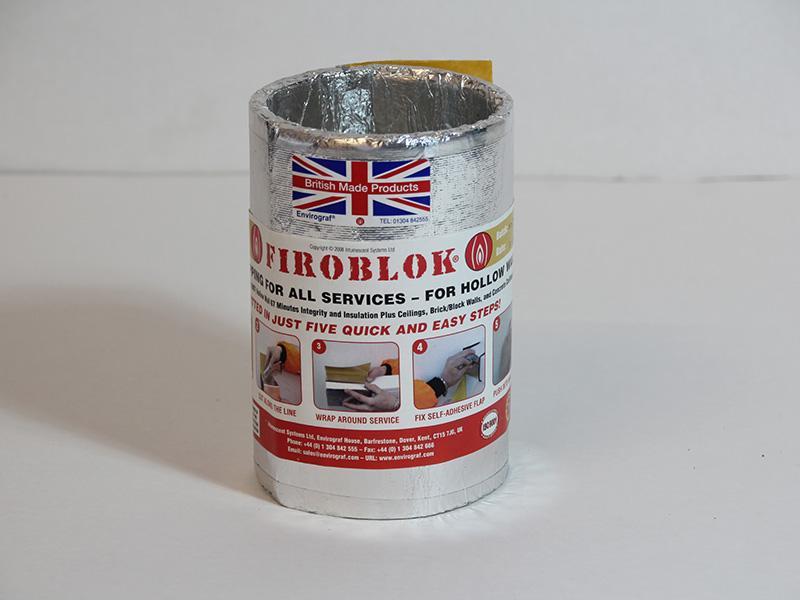

FOR PIPES

REF INTERNAL DIAMETER EXTERNAL DIAMETER
IWS18 18mm 29mm
IWS25 25mm 31mm
IWS33 33mm 43mm
IWS40 40mm 50mm
IWS50 50mm 60mm
IWS55 55mm 63mm
IWS60 60mm 70mm
IWS83 83mm 93mm
IWS90 90mm 100mm
IWS100 100mm 110mm
IWS115 115mm 125mm
IWS127 127mm 137mm
IWS150 150mm 160mm
IWS165 165mm 176mm
IWS215 215mm 226mm

Available in 100mm, 150mm, 200mm and 500mm lengths.

Add /P to above references to add end plates to the sleeve.
