Intumescent Trunking Pillows

Expanding intumescent pillows to seal voids inside of electrical trunking. (PRODUCT 27)

RESET OPTIONS >
REF: PRODUCT 27
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

Compressible intumescent pillow with retaining cord and lug. Meeting the 17th Edition IEE Regulations. When cold smoke as well as fire protection is required in steel or PVC trunking passing through walls and floors. The retaining cord and lug fit inside the trunking, so if the pillow is removed, the lid cannot be re-fitted without first replacing the pillow. The pillows will initially allow for 30% or less filling of cables and will then compress to allow for 50% cable fill, without overheating the cables. If trunking is more than 50% full, the intumescent Pads (Product 26) should be used.



ADVANTAGES

  • Provide up to 4 hours integrity
  • For use when cold smoke as well as fire protection is required in steel or PVC trunking passing through walls, floors and ceilings
  • Can be fitted with cord and 100mm retention tag to fix the pillows in place as a permanent solution
  • Great for use around cables which are regularly adjusted
  • Non-fibrous, dust-free materials are suitable for use in sterile areas or clean rooms
  • Specifically designed to be used in trunking that is less than 50% full of cables



FIRE TEST PERFORMANCE

Tested to BS476 Part 22 (1987), achieving up to 4 hours integrity.

Tested at VNE to European Standard EN1363-1 (2000). Test terminated at 150 minutes with no product failure recorded.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

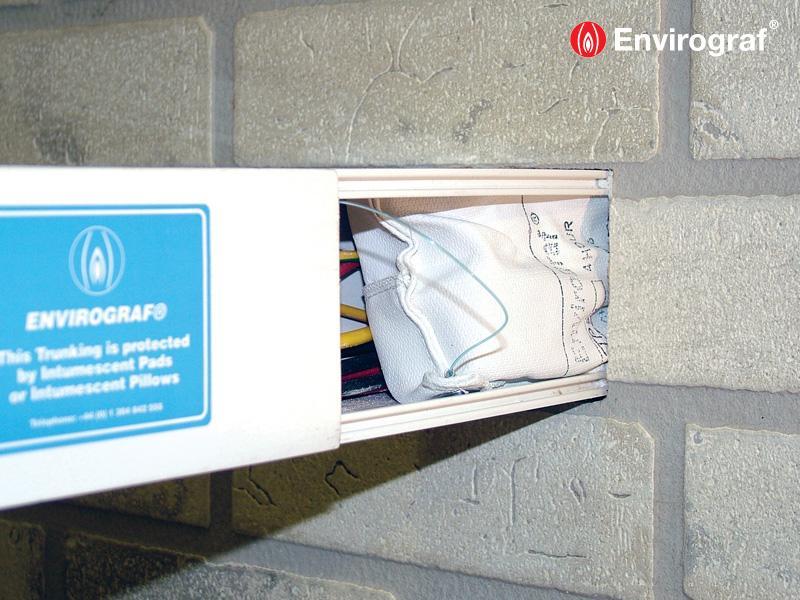

Intumescent Trunking Pillows are available in a range of sizes to suit standard sizes of trunking. Used where trunking passes through fire rated floors and walls. The pillows are simply pushed into place in the trunking where it passes through walls and floors. Supplied with a fitted cord and lug which can be attached inside the trunking to ensure pillows will be refitted after removal for maintenance or access.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD027-12-2012



Application Instructions

AP027-09-2014



COSHH Data

HS027-12-2013

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF TRUNKING LENGTH PILLOW SIZE
TP021 050mm x 025mm 100mm 050mm x 016mm x 100mm
TP022 050mm x 050mm 100mm 050mm x 035mm x 100mm
TP031 075mm x 025mm 100mm 075mm x 016mm x 100mm
TP032 075mm x 050mm 100mm 075mm x 035mm x 100mm
TP033 075mm x 075mm 100mm 075mm x 050mm x 100mm
TP041 100mm x 025mm 100mm 100mm x 016mm x 100mm
TP042 100mm x 050mm 100mm 100mm x 035mm x 100mm
TP043 100mm x 075mm 100mm 100mm x 050mm x 100mm
TP044 100mm x 100mm 100mm 100mm x 070mm x 100mm
TP062 150mm x 050mm 100mm 150mm x 035mm x 100mm
TP063 150mm x 075mm 100mm 150mm x 050mm x 100mm
TP064 150mm x 100mm 100mm 150mm x 070mm x 100mm
TP066 150mm x 150mm 100mm 150mm x 110mm x 100mm
TP084 200mm x 100mm 100mm 200mm x 070mm x 100mm
TP093 225mm x 075mm 100mm 225mm x 050mm x 100mm
TP099 225mm x 225mm 100mm 225mm x 170mm x 100mm
TP126 300mm x 150mm 100mm 300mm x 110mm x 100mm
