Multi-Purpose Box

Intumescent-lined metal box to fire seal openings around a wide range of services. (PRODUCT 16)

RESET OPTIONS >
REF: PRODUCT 16
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

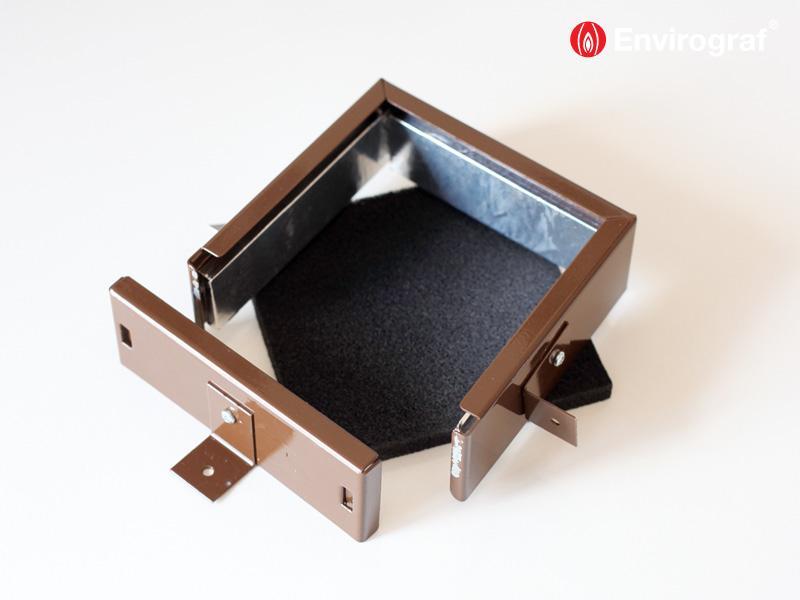

The multi-purpose box comprises a box section housing intumescent materials, with a detachable top section, which can be removed, allowing the unit to be used in tight corners or over existing services. The fixing brackets are adjustable by bending them flat for fitting into corners, or when the box is flush against the floor or ceiling. A fire-resistant sponge smoke seal is supplied with each unit.  Can be easily cut with a knife, allowing services to pass through. The sponge is used where service holes are not filled. The multi-purpose box is the most versatile of its kind available and has been specifically designed for most installation requirements where services pass through fire barrier walls, ceilings or floors.



ADVANTAGES

  • A versatile solution to the problem of services passing through walls, floors and ceilings, offering up to 4 hours protection
  • Detachable face plate allows for the box to be fitted in tight corners
  • Adjustable brackets can be bent flat to fit flush against flat surfaces such as walls or ceilings, or kept at a right-angled position to fit in corners



FIRE TEST PERFORMANCE

Tested to BS476 Parts 20 and 22 (1987), achieving up to 4 hours fire protection.

Tested at VNE to European Standard EN1363-1 (2000).

Tested to European Standard EN 1366-3, achieving 197 minutes fire protection.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

For standard open areas, simply place the box over the services, use the smoke seal if required, and screw into position. If the services are already in place, remove the detachable section, fix the ‘U’ section first then slide back the detachable section and fix the smoke seal if required. When the unit is flush against a ceiling, floor, wall, or corner simply bend the fixing brackets flat and screw into position.  When using multi-purpose box to fit around existing services in a tight corner, simply remove the detachable section and fix the ‘U’ section into position. Fixing brackets can be bent flat if required. Replace the detachable section and fix to finish.  Insert the smoke seal if required.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD016-10-2012



Application Instructions

AP016-11-2012



COSHH Data

HS016-11-2012

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF DEPTH INTERNAL (BOX) EXTERNAL (BOX)
EB  45/  50 50mm 45mm 67mm
EB  55/  50 50mm 55mm 76mm
EB  72/  50 50mm 72mm 93mm
EB  83/  50 50mm 83mm 105mm
EB115/  50 50mm 115mm 138mm
EB135/  50 50mm 135mm 158mm
EB166/  50 50mm 166mm 196mm
EB166/100 100mm 166mm 196mm
EB215/  50 50mm 215mm 255mm
EB215/100 100mm 215mm 255mm
EB265/100 100mm 265mm 315mm
EB315/100 100mm 315mm 365mm
