Rainscreen Fast Fix Cavity Barrier

Effective solution for ventilated rainscreen cavities, providing air gap of 25mm or 40mm. (PRODUCT 55)

REF: PRODUCT 55B
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

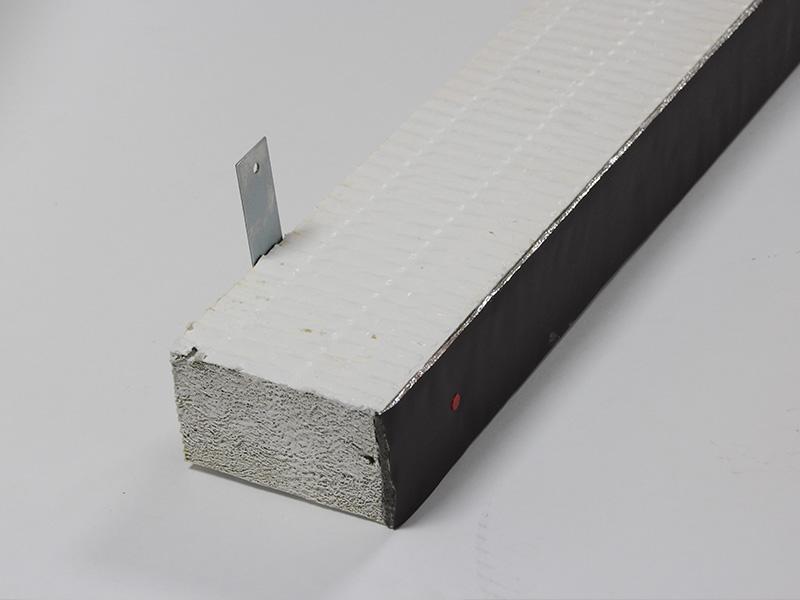

An effective solution for ventilated rainscreen cavities available in a range of sizes allowing for a continuous air gap of up to 25mm and up to 40mm. The Fast Fix cavity barrier combines high-density rock fibre with intumescent coating on both sides and an intumescent strip which, in the event of a fire will seal the ventilation gap.  Supplied in 1220mm lengths with 3 fixing brackets per length.



ADVANTAGES

  • Effective solution for ventilated rainscreen cavities
  • Suitable for both horizontal and vertical application
  • Maximum air gap up to 40mm
  • Very simple installation process
  • Supplied in 1220 mm lengths with 3 fixing brackets
  • 2 hours fire protection for cavities from 75mm to 315mm



FIRE TEST PERFORMANCE

Fire test performance according to the BS EN 1363-1:1999, achieving 2 hours fire protection.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

The barrier must be mechanically fixed to the substrate at maximum 500mm centres with non-combustible fixings. When fixing the brackets into the barrier, ensure they are fully pushed and centered in the middle.  When attaching to the wall, ensure there are no gaps between the substrate and the barrier.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD055-RS FFCB-09-2016



Application Instructions

AP055-RS FFCB-09-2016



COSHH Data

HS055-RS FFCB-09-2016



Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

Supplied in 1220mm lengths



25mm AIRFLOW GAP – WHITE PINS
REF CAVITY WIDTH WIDTH THICKNESS AIRFLOW GAP
RS/FFCB/50/25 75mm 50mm 60mm 25mm
RS/FFCB/60/25
RS/FFCB/75/25
85mm
100mm
60mm
75mm
60mm
60mm
25mm
25mm
RS/FFCB/100/25
RS/FFCB/150/25
125mm
175mm
100mm
150mm
60mm
60mm
25mm
25mm
RS/FFCB/175/25
RS/FFCB/200/25
200mm
225mm
175mm
200mm
60mm
60mm
25mm
25mm
RS/FFCB/225/25
RS/FFCB/250/25
250mm
275mm
225mm
250mm
60mm
60mm
25mm
25mm
RS/FFCB/275/25 300mm 275mm 60mm 25mm
40mm AIRFLOW GAP – RED PINS
REF CAVITY WIDTH WIDTH THICKNESS AIRFLOW GAP
RS/FFCB/50/40 90mm 50mm 60mm 40mm
RS/FFCB/60/40
RS/FFCB/75/40
100mm
115mm
60mm
75mm
60mm
60mm
40mm
40mm
RS/FFCB/100/40
RS/FFCB/150/40
140mm
190mm
100mm
150mm
60mm
60mm
40mm
40mm
RS/FFCB/175/40
RS/FFCB/200/40
215mm
240mm
175mm
200mm
60mm
60mm
40mm
40mm
RS/FFCB/225/40
RS/FFCB/250/40
RS/FFCB/275/40
265mm
290mm
315mm
225mm
250mm
275mm
60mm
60mm
60mm
40mm
40mm
40mm
