Rebated Acoustic, Draught, Smoke And Weather Seals

A range of rebated seals to provide acoustic, draught, smoke and weather protection. (PRODUCT 73)

RESET OPTIONS >
REF: PRODUCT 73
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A self-adhesive holder supplied in aluminium, or in black, brown, cream, grey, red, or white PVC: 2100mm long, 10mm wide x 3mm deep.



ADVANTAGES

  • Plastic holder comes in black, brown, cream, grey, red or white- The holder has a self-adhesive backing for ease of fitting

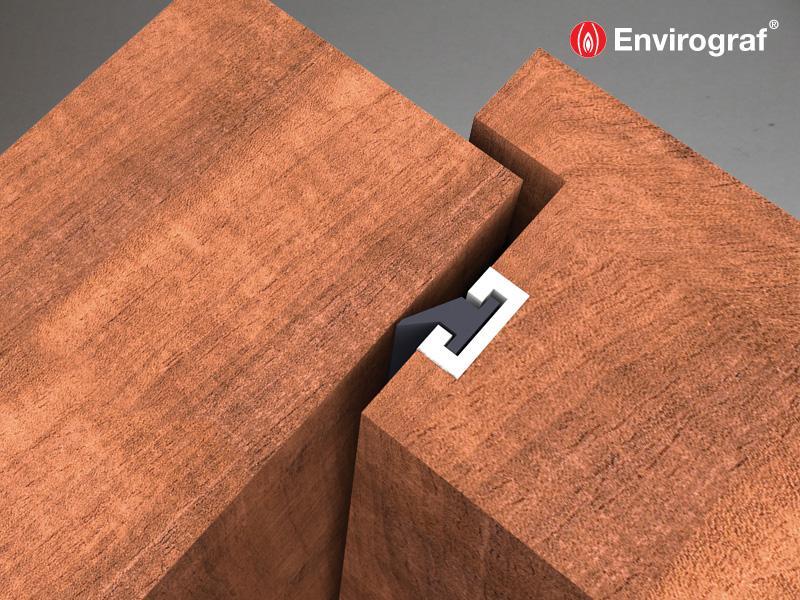

  • The seal holder is rebated into wooden doors or windows and adhered to the surface of metal windows using the self-adhesive backing on the base of the holder
  • Can be fitted to single or double doors, folding doors, sash windows and more



FIRE TEST PERFORMANCE

N/A

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Make a rebate in the door or frame to suit the 2mm deep x 10mm wide holder. Always add 1mm to the width of the holder for the rebate to allow for the shrinkage of timber / paint.  Remove the cover paper from the holder’s self-adhesive backing then position the seal and fix.  Finally, secure each end with panel pins. The holder can be painted but NOT the seal fitted to it.

Note: ensure that new wood is sealed before adhering the holder. Important – 1-1½mm of the brush or rubber seal is held within the holder. Brush with fin is always ½mm higher than regular brush. Make allowance for this when specifying.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD073-10-2014



Application Instructions

AP073-10-2014



COSHH Data

N/A

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF DESCRIPTION
ES/AH    Aluminium Holder Only

10mm wide x 3mm thick



2100mm long



ES/AHS



Aluminium Holder with seal

10mm wide x 3mm thick



2100mm long



ES/PH PVC holder Only

10mm wide x 3mm thick

Please state colour required



1050mm long

2100mm long



ES/PHS





PVC Holder with seal

10mm wide x 3mm thick

Please state colour required





1050mm long

2100mm long

REF B

REF A

REF T

REF V

REF S

+size

+size

+size

+size

+size

Brush Seal 5mm, 7mm, 10mm

Rubber type angle blade 6mm, 9mm

Rubber type tubular Seal 6mm, 9mm

Rubber type V blade 6mm

Rubber type straight blade 5mm, 7mm, 9mm
