Rebated Intumescent Fire And Smoke Seals

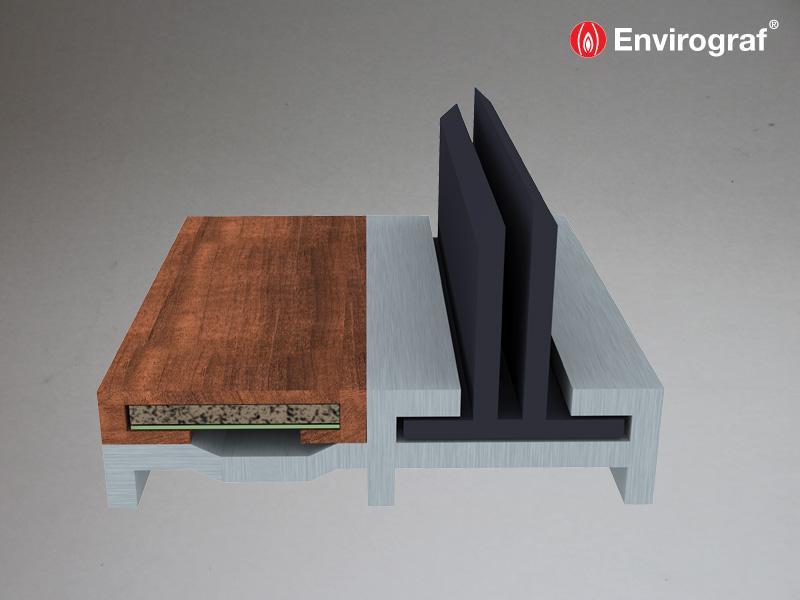

A rebated, aluminium holder fitted with a range of fire and smoke seals. (PRODUCT 76)

RESET OPTIONS >
    Reset options
REF: PRODUCT 76
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

An aluminium holder with intumescent fire/smoke seal, fitted into rebated fire doors and frames.

ES/SM30: 30 minutes fire rated version, comprising a 7mm deep x 9mm wide x 2200mm long aluminium holder with choice of brush, straight seal. The brush smoke seals are available in white, black, brown or grey and 5mm, 7mm, or 10mm in length. The straight rubber blade 4mm or 7mm long.

ES/SM60: 60 minute fire rated version comprising a 6mm deep x 20mm wide x 2200mm long aluminium holder with intumescent facing in aluminium with grey brush, white/white brush, black/ black brush, brown/brown brush or red/grey brush colours. Brush and blade sizes are as above.

ES/SM60/P: Plastic holder with intumescent 7mm deep x 20mm wide x 2200 long in aluminium, white, black, brown or red colours. For fitting into rebate opposite the ES/SM60, providing increased protection and sealing efficiency.



ADVANTAGES

  • Able to accommodate both brush and rubber smoke seals
  • Intumescent material fitted to ES/SM60 holders will provide additional fire protection
  • ES/SM60/P can be fitted opposite aluminium holders to provide increased protection and sealing efficiency



FIRE TEST PERFORMANCE

The aluminium holder houses Envirograf® Product 100, which has been tested to:

BS476 Part 22 (1987), achieving both 30 and 60 minutes integrity.

BS476 Part 23 (1987), achieving 69 minutes integrity.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

ES/SM60: Fit the aluminium profile into the rebate and fix with the nails supplied. Peel off the backing strip from the intumescent finishing piece and adhere is to the aluminium holder, thus hiding the heads of the fixing nails.

ES/SM60/P AND ES/SM30: peel off the backing strip from the profile and adhere into the rebate.

Important: The brush seal length must be between 1 – 1.5mm longer than the door gap between frame or adjacent double door.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD076-10-2014



Application Instructions

AP076-10-2014



COSHH Data

HS076-10-2014

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF UNIT DIMENSIONS (DxWxL) LENGTH FIRE RATING
ES/SM30/B 9mm x 7mm with brush seal 2200mm 30/60 minutes
ES/SM30/S 9mm x 7mm with straight blade 2200mm 30/60 minutes
ES/SM60/B 20mm x 6mm with brush seal 2200mm 30/60 minutes
ES/SM60/S 20mm x 6mm with straight blade 2200mm 30/60 minutes
ES/SM60/P 20mm x 7mm rebate opposite ES/SM60 2200mm 30/60 minutes



ES/PLUG Please see product 71 for intumescent-filled plastic plugs offering 60 minutes protection of fixing screws
