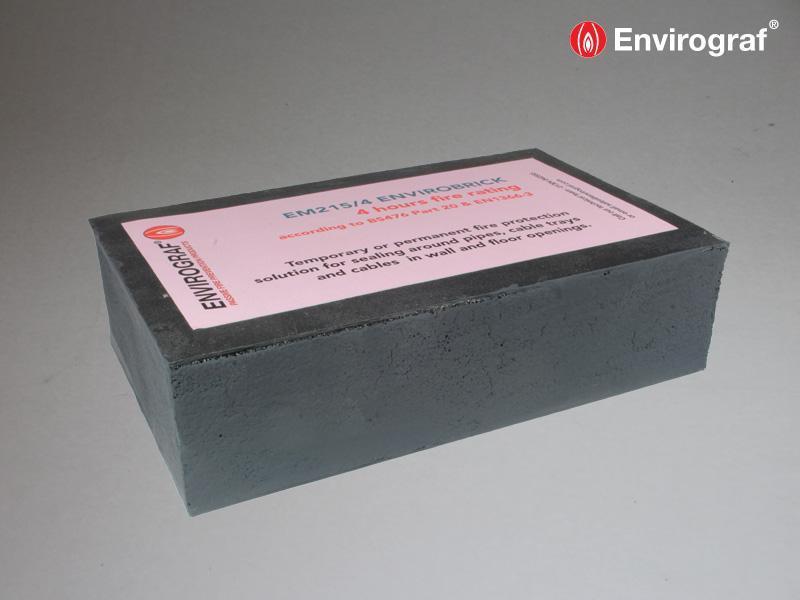

Rectangular Foam Bricks And Circular Foam Plugs

Intumescent sponge bricks and circular plugs for sealing around services. (PRODUCT 8)

RESET OPTIONS >
REF: PRODUCT 8
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

This product range provides temporary or permanent fire sealing around services in ceilings, floors, and walls. The products offer up to 2 hours protection and acoustic properties. See separate leaflet for more details. Other sizes made to order.



ADVANTAGES

  • A temporary or permanent fire protection solution for sealing around pipes, cable trays and cables passing through openings in hollow partition walls, floors or ceilings
  • Available in a 1-hour form, or a 2-hour intumescent-coated form
  • Both types are fitted with rubberised intumescent strips which expand in a fire, sealing in smoke and flames to prevent them spreading
  • Bricks can be fitted either horizontally or vertically into hollow plasterboard walls to effectively fire stop voids



FIRE TEST PERFORMANCE

Tested to BS476 Part 20 & EN1366-3, achieving up to 2 hours fire protection.

Acoustic properties tested to BS EN ISO 140 Part 4 (57 dB).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Envirobrick is very easy to install. Can be cut to fit if necessary using a sharp knife.  Lay the Envirobrick rectangular blocks as bricks to fill any size opening. Can be fitted either way into hollow plasterboard walls – if fitting into a hollow partition wall greater than 200mm we can make a wall lining to fit into the width of the opening first.  Envirobrick circular seals can be used for filling circular holes or pipes and can be cut for pipes, cables, trunking etc to pass through.  Envirograf® black mastic can be used to fill any open joints. Envirobricks can be removed and refitted as required.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD008-07-2014



Application Instructions

AP008-07-2014



COSHH Data

HS008-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

RECTANGULAR FOAM BRICKS

REF DIMENSIONS
EM215 0200mm x 130mm x 50mm

NB: EM—/1 = 1 hour; EM—/2 = 2 hours



CIRCULAR FOAM PLUGS

REF DIAMETER
CB  65 065mm
CB  75 075mm
CB100 100mm
CB125 125mm
CB150 150mm
CB200 200mm
CB250 250mm
CB300 300mm

NB: CB—/1 = 1 hour; CB—/2 = 2 hours
