Smoke Curtain

Smoke resistant barrier to prevent spread of flame. (PRODUCT 117)

RESET OPTIONS >
REF: PRODUCT 117
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

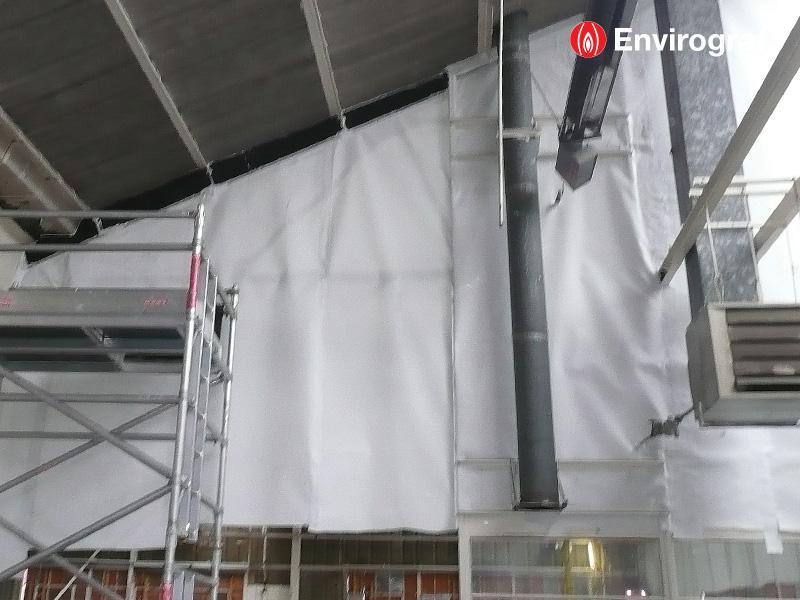

For shopping malls, exhibition hall, factories, etc. The curtain is an impregnated glass cloth, sealed with a coating which will withstand heat up to 1200°C, not only giving smoke protection, but also Class ‘0’ and Class ‘1’. The curtain can be cut with a sharp knife or scissors, and adhesive is supplied so that a 25 to 30mm overlap can be made, allowing the curtain to be made up to any area required. Available on 50m rolls. Envirograf® smoke curtain is a very robust material and will stand up to hard wear. When fixing the curtain to steel or concrete, use Envirograf® FB/C metal straps. For fixing to timber, use Envirograf® FB/T battens.



ADVANTAGES

  • Made from a very robust, hard-wearing material
  • Can be cut with a sharp knife or scissors
  • Adhesive is supplied for a joint to be made, allowing the curtain to be made up to any size by joining sections together



FIRE TEST PERFORMANCE

Tested to BS476, achieving Class 0 and Class 1 protection.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

When fixing the curtain to steel or concrete, use Envirograf FB/C metal straps, and for fixing to timber, use Envirograf FB/T battens (See Product 57).

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

N/A



Application Instructions

N/A



COSHH Data

HS117-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF SIZE
SC Smoke Curtain 1220mm wide x 1m
Hanger and Weight per 2m length



FIXING BATTENS REF SIZE
FB/C2 2000mm length
FB/MFB 2000mm length
