Surface-Mounted Brush Smoke Seals

Brush smoke seals which are surface-mounted onto existing fire doors. (PRODUCT 72)

RESET OPTIONS >
REF: PRODUCT 72
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

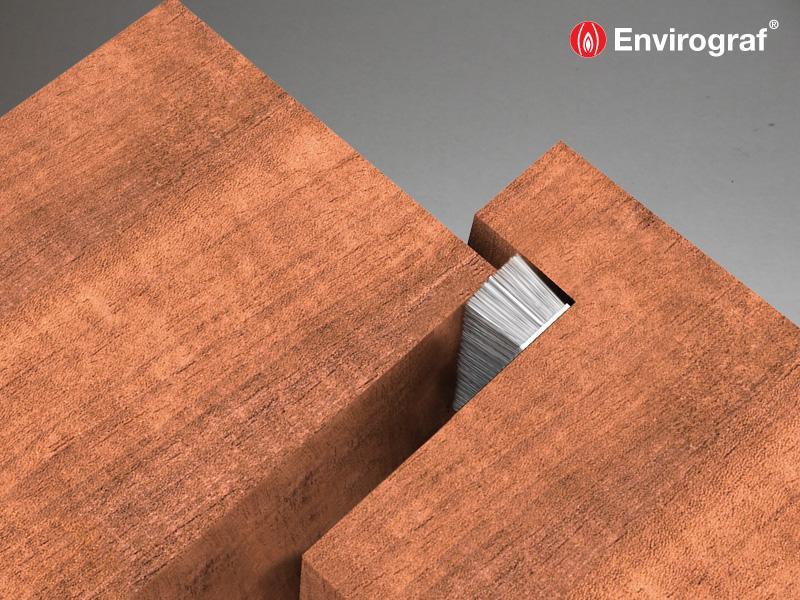

Surface-mounted brush seals with self-adhesive backing tape, available in brown, black, white, or grey. For use where intumescent seals are already fitted and smoke sealing is needed. To fit, simply peel off the backing paper from the self-adhesive strip and stick to the door frame, down the edge of the rebate. Panel pins are supplied for additional fixing. See also Product 78 (Envirostrip).



ADVANTAGES

  • For use where intumescent seals are already fitted and smoke sealing is required- Panel pins are supplied for additional fixing
  • Brush seals without self-adhesive backing can be fitted into draught seal holders
  • Can be used for sliding door and windows



FIRE TEST PERFORMANCE

Tested to comply with BS476 Part 31/1 (1987).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

To fit the self-adhesive seal, simply peel off the backing material to reveal the adhesive tape and press to the door frame down the edge of the rebate. Secure with the panel pins supplied by fixing at each end and then at 300mm intervals along the length of the seal. Brush seals without self-adhesive backing can be fitted into draught seal holders.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD072-09-2014



Application Instructions

AP072-09-2014



COSHH Data

N/A

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.
REF
ES/SS05 5mm brush 1050mm lengths Non-Adhesive* Self Adhesive
ES/SS05/R 5mm brush roll form per metre Non-Adhesive* Self Adhesive
ES/SS05/S 5mm brush single door set Self Adhesive
ES/SS05/D 5mm brush double door set Self Adhesive
ES/SS07 7mm brush 1050mm lengths Non-Adhesive* Self Adhesive
ES/SS07/R 7mm brush roll form per metre Non-Adhesive* Self Adhesive
ES/SS07/S 7mm brush single door set Self Adhesive
ES/SS07/D 7mm brush double door set Self Adhesive
ES/SS10 10mm brush 1050mm lengths Non-Adhesive* Self Adhesive
ES/SS10/R 10mm brush roll form per metre Non-Adhesive* Self Adhesive
ES/SS10/S 10mm brush single door set Self Adhesive
ES/SS10/D 10mm brush double door set Self Adhesive

*Add /N to end of reference to order seal(s) without self-adhesive backing tape.
