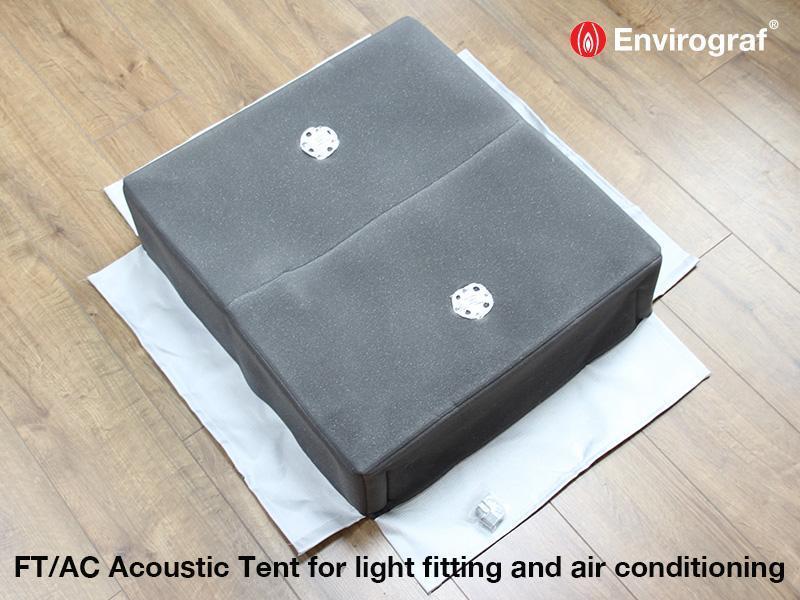

31-FT-AC

Tents For Light Fittings And Air Conditioning Units

Fire and smoke resistant covers to be fitted over light fittings and air conditioning units. (PRODUCT 31)

RESET OPTIONS >
REF: PRODUCT 31
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A very lightweight, self-supporting and completely ventilated tent designed to avoid overheating of the light fitting. Gable entries are fitted at the top of the tent, and it is easily installed by one person in minutes. No extra support or mechanical screw fixing required. Giving one-hour fire protection. For use where recessed fluorescent light fittings are installed above suspended or plasterboard fire rated ceilings to maintain fire integrity. No extra ceiling supports are necessary, owing to the light weight of the cover.



ADVANTAGES

  • Provides acoustic protection and up to 88 minutes integrity- Designed for use with fluorescent light fittings and air conditioning units which are recessed into fire rated suspended or platerboard ceilings
  • Easily installed by one person in minutes
  • Can be fitted during the installation process, or retrofitted to existing air conditioning units and light fittings



FIRE TEST PERFORMANCE

Tested to BS476 Part 22 and Part 23 Clause 5 (1987), achieving 88 minutes integrity.

Acoustic version tested to comply with Document ‘E’.

Tested to NEN 6072 (1997).

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

Lay the tent out flat on its back and thread the rods supplied through the centre hole.  With the tent laid out, turn it to its upright position and insert rod ends into the corresponding pockets located at each corner of the tent.  Place the tent over the light fitting and fit the cable through the ventilation hole, connecting to the light fitting according to the manufacturer’s instructions. Pull the material away from the fitting over the T-bar at each corner and fix the material to the T-bar with the supplied clips. Pinch each clip with a pair of pliers to fix tightly.  For larger tents (FT4 and up), follow the above procedure, but be sure to fix in place where the tent lies over the T-bars with supplied clips.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD031-03-2013



Application Instructions

AP031-03-2013

AP031a-12-2013



COSHH Data

HS031-05-2015

HS031-ACOUSTIC-05-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

REGULAR

REF SIZE RATING
FT1 0350mm x 300mm x 150mm 1 hour
FT2 0650mm x 600mm x 150mm 1 hour
FT21 0650mm x 300mm x 150mm 1 hour
FT4 1250mm x 600mm x 150mm 1 hour
FT41 1250mm x 300mm x 150mm 1 hour
FT5 1550mm x 600mm x 150mm 1 hour
FT6 1850mm x 600mm x 150mm 1 hour
FT61 1850mm x 300mm x 150mm 1 hour



ACOUSTIC

REF SIZE RATING
FT1/AC 0350mm x 300mm x 150mm 1 hour
FT2/AC 0650mm x 600mm x 150mm 1 hour
FT4/AC 1250mm x 600mm x 150mm 1 hour
FT41/AC 1250mm x 300mm x 150mm 1 hour
FT5/AC 1550mm x 600mm x 150mm 1 hour
FT6/AC 1850mm x 600mm x 150mm 1 hour
FT61/AC 1850mm x 300mm x 150mm 1 hour



AIR CONDITIONING UNIT COVERS

REF SIZE
AIR1 400mm x 400mm x 240mm h
AIR2 400mm x 400mm x 280mm h
AIR3 600mm x 600mm x 250mm h
AIR4 900mm x 850mm x 240mm h
AIR5 900mm x 850mm x 280mm h

Price includes patches and adhesive for rods and pipes
