Timber Frame Cavity Barrier Range

Cavity barriers designed for timber frames and party walls or floors. (PRODUCT 55)

REF: PRODUCT 55A
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

A range of lightweight, adhesive-backed cavity barriers, ideal for use in timber-framed buildings, party walls and cavity surfaces with with a rendered finish.

CV STRIP CAVITY BARRIER: A flexible, PVC and foil-clad intumescent strip with self-adhesive backing to adhere it to walls. High expansion intumescent will lock against the external side of the internal wall in a fire, giving full protection without affecting the outer wall.

FB/TS CAVITY BARRIER: A fireproof sponge barrier with intumescent coating, clad in UPVC foil and red PVC coating to seal the barrier against moisture. Adhesive backing makes it easy to affix to the external face of the internal wall, expanding at medium pressure in a fire to seal off fire and smoke.



ADVANTAGES

  • Both barrier ranges will provide a minimum of 2 hours protection
  • CV strip barriers are ideal for modular buildings where space is limited, due to their small profile
  • FB/TS is a more robust barrier that is ideal for load-bearing party floors and walls
  • Easy to install with adhesive strip, but can be fixed down with screws or nails to provide additional fixing



FIRE TEST PERFORMANCE

CV Strip barrier tested to BS476 parts 20, 22 and BS EN 1363-1 (1999), giving fire protection from 60 to 120 minutes.

FB/TS Free-Air-Flow barrier tested to BS EN 1363-1 (1999), achieving up to 123 minutes fire protection.

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

N/A

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

N/A



Application Instructions

N/A



COSHH Data

HS055-CAVITY STRIP BARRIER-02-2015

HS055-FB TS-06-2015

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

CV CAVITY BARRIER STRIP

REF WIDTH THICKNESS GAP SIZE PROTECTION
CV30/4 30mm 4mm 30/45mm
CV30/6 30mm 6mm 50/60mm
CV30/8 30mm 8mm 60/70mm
CV30/10 v 30mm 10mm 80/90mm
CV30/15 v 30mm 15mm 100/120mm
CV75/4 30mm 4mm 30/50mm
CV75/10 v 75mm 10mm 80/100mm

Available in 1 metre, 2 metre and 3 metre lenghts.

V – with Brackets



FB/TS Cavity Barrier

FB/TS             Timber frame with brick/timber facing
50mm sponge & intumescent for party walls and floors

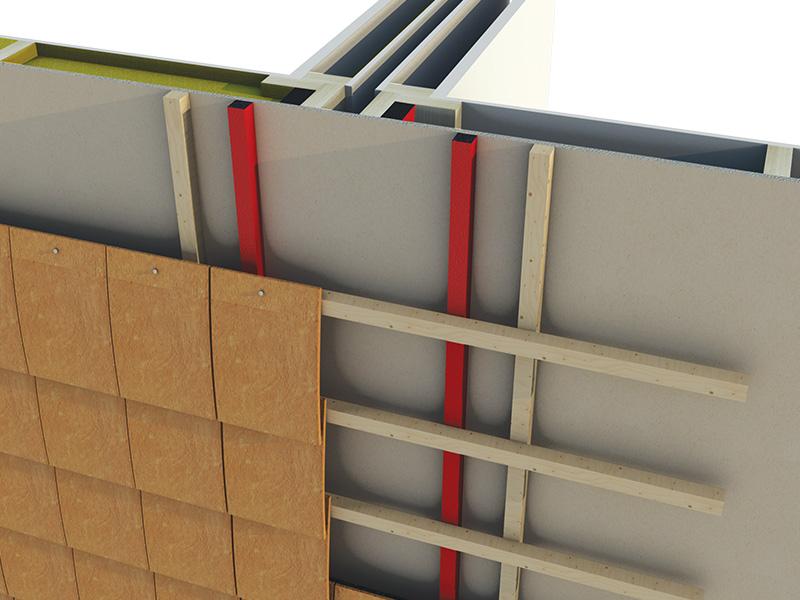

FB/TS/TB     Timber frame with tile facing
50mm sponge & 2 face intumescent
for party walls and floors

Sizes:      50mm x 50mm           40mm x 50mm
