Weather Board

Acoustic, draught and weather seal designed to withstand severe wind and rain. (PRODUCT 120)

RESET OPTIONS >
REF: PRODUCT 120
Category:

Share on:

  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Product Description

Want create site? Find Free WordPress Themes and plugins.

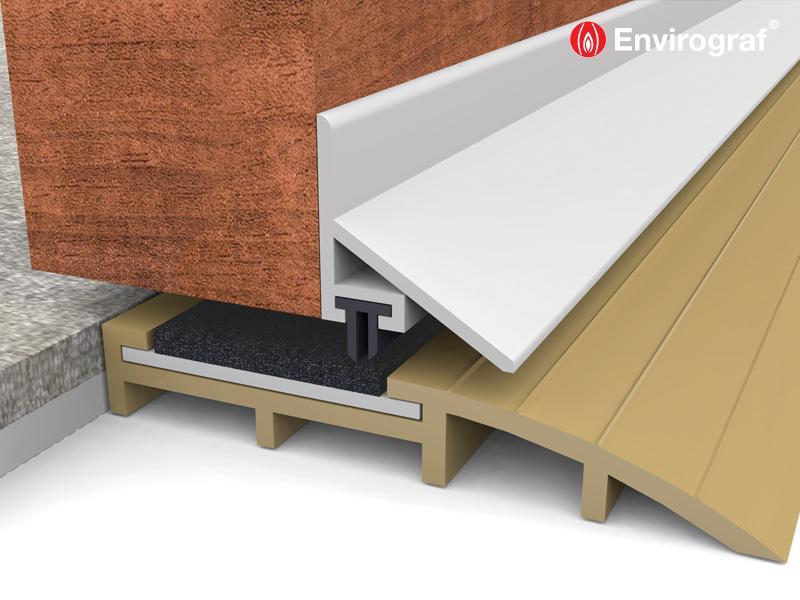

A PVC seal used in conjunction with Envirograf® Products 106 or 107 threshold seals. Available in black, brown, or grey. The seal is screwed to the exterior of the door face and offers weather and draught protection to a threshold seal.



ADVANTAGES

  • Can be applied to the bottom edge of doors and used in conjunction with Envirograf® Products 106 and 107 (threshold seals) for a complete solution to threshold draught and weather sealing
  • Available in a range of sizes to suit the door
  • Three seal types are available: an angled rubber seal, a straight rubber seal and a brush smoke seal



FIRE TEST PERFORMANCE

N/A

Did you find apk for android? You can find new Free Android Games and apps.

APPLICATION INSTRUCTIONS

Want create site? Find Free WordPress Themes and plugins.

The seal is screwed to the exterior of the door face and offers draught and weather protection to the flat threshold seal of Products 106 and 107.

Did you find apk for android? You can find new Free Android Games and apps.

DOWNLOADS

Want create site? Find Free WordPress Themes and plugins.

Please use the links below to download relevant information as PDF documents:



Technical Information

TD120-11-2014



Application Instructions

AP120-11-2014



COSHH Data

N/A

Did you find apk for android? You can find new Free Android Games and apps.

ORDER REFERENCES

Want create site? Find Free WordPress Themes and plugins.

ANGLED RUBBER SEALS

REF SEAL SIZE LENGTH
TWB/A/6/1050 6mm 1050mm
TWB/A/6/2100 6mm 2100mm
TWB/A/9/1050 9mm 1050mm
TWB/A/9/2100 9mm 2100mm



STRAIGHT RUBBER SEALS

REF SEAL SIZE LENGTH
TWB/S/5/1050 5mm 1050mm
TWB/S/5/2100 5mm 2100mm
TWB/S/7/1050 7mm 1050mm
TWB/S/7/2100 7mm 2100mm
TWB/S/9/1050 9mm 1050mm
TWB/S/9/2100 9mm 2100mm



BRUSH SEALS

REF SEAL SIZE LENGTH
TWB/B/7/1050 7mm 1050mm
TWB/B/7/2100 7mm 2100mm
TWB/B/10/1050 10mm 1050mm
TWB/B/10/2100 10mm 2100mm
TWB/B/12/1050 12mm 1050mm
TWB/B/12/2100 12mm 2100mm
TWB/B/15/1050 15mm 1050mm
TWB/B/15/2100 15mm 2100mm
